395-017-524-408

Edgeboard Connectors Overview

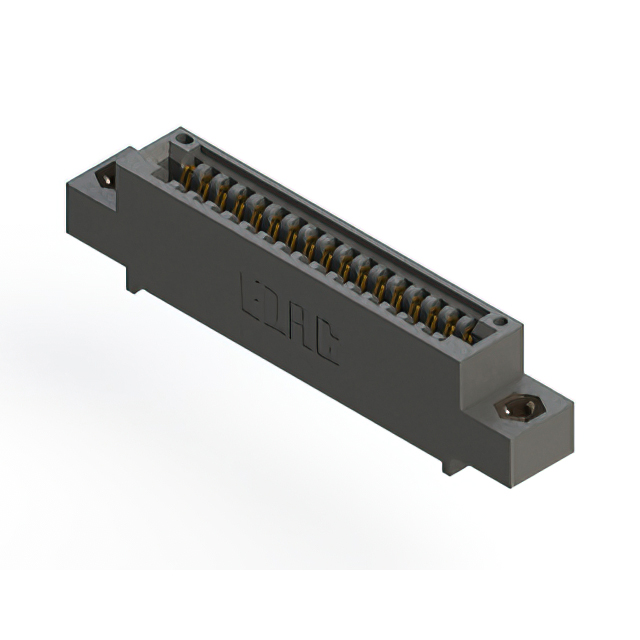

The EDAC Inc. 395-017-524-408 is a card edge connector from the 395 series, designed for vertical through-hole mounting. It features 17 positions in a single row with a 0.100 inch (2.54mm) pitch. The connector utilizes female cantilever contacts with gold plating and a black thermoplastic polyester insulator. It supports non-specified single-edge cards with thicknesses ranging from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for standard card edge applications
• Vertical orientation with through-hole termination method
• Gold-plated cantilever contacts ensuring reliable signal transmission
• Thermoplastic polyester insulator providing thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring modular board connections
• Telecommunications equipment interface modules
• Automotive electronics sub-systems
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to ensure correct orientation and termination style. Confirm that the target PCB layout matches the specified 0.100 inch pitch and single-row footprint. Check insulation material ratings against operating environment requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-sided card edge connection is required with vertical mounting constraints. Ensure the mating card thickness falls within the specified 0.054 to 0.070 inch range. Consider the cantilever contact type for ease of insertion and removal during maintenance or module replacement cycles.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 395 series, which offers various configurations for card edge applications. The series provides options for different row counts, pitches, and termination styles. This specific model represents a single-row variant suitable for moderate density interconnect needs in electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 395 series connectors with identical pin counts and pitch but different termination or orientation. Verify mechanical dimensions and electrical specifications before cross-referencing with alternative manufacturers' offerings.
