395-019-520-112

Edgeboard Connectors Overview

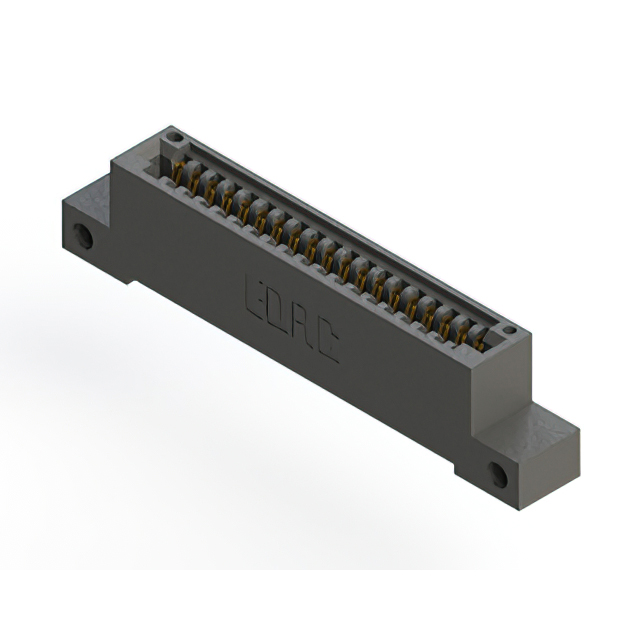

The EDAC Inc. 395-019-520-112 is a single-row card edge connector designed for through-hole mounting with wire-wrap termination. It features 19 female contacts arranged in one row with a 0.100-inch (2.54mm) pitch. The connector accepts non-specified single-sided cards with a thickness range of 0.054 to 0.070 inches (1.37mm to 1.78mm). Contacts are made of copper alloy with gold plating, housed in black thermoplastic polyester insulation. It operates within a temperature range of -40°C to 105°C and includes top-mounting openings with M3 threaded inserts.

Edgeboard Connectors Feature Summary

• Single-sided edge connection design for standard printed circuit boards
• Wire-wrap termination method for secure contact attachment
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Integrated mounting features including top openings and M3 threaded inserts

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment board assembly
• Automotive electronics modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with the target PCB card thickness and mounting requirements before procurement. Confirm RoHS compliance status as per the latest official documentation.

Edgeboard Connectors Selection Notes

Select this component when a single-row, wire-wrap terminated connector is required for non-specified single-sided cards. Consider the 0.100-inch pitch and through-hole mounting constraints. Evaluate the operating temperature range and mechanical stability provided by the integrated mounting features for the specific application environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various configurations including different contact counts, row arrangements, and termination options. The 395-019 variant specifically provides a 19-position configuration suitable for applications needing moderate I/O density with high reliability.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC replacement guide for verified substitutes. Cross-reference pin count, pitch, and termination type to ensure functional equivalence. Verify that any alternative part meets the same mechanical and electrical specifications.
