395-029-541-102

Edgeboard Connectors Overview

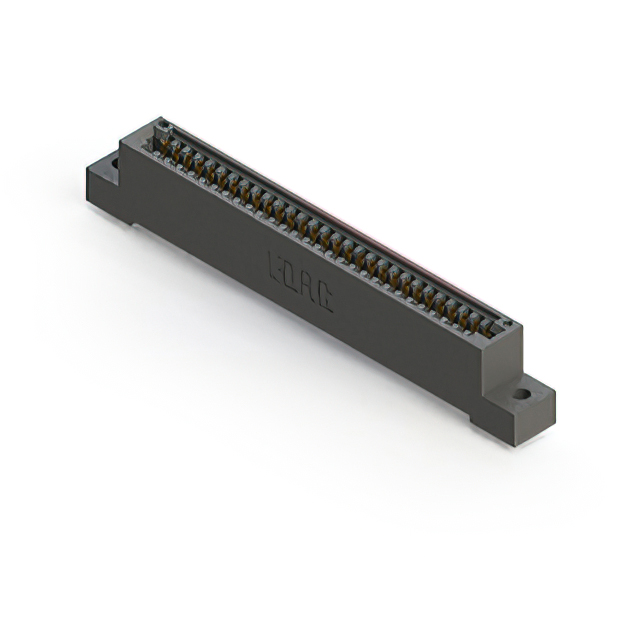

The EDAC Inc. 395-029-541-102 is a standard card edge connector designed for vertical through-hole mounting. It features 29 positions with a 0.100 inch (2.54 mm) pitch and accepts single-edge cards ranging from 0.054 to 0.070 inches in thickness. The connector utilizes female cantilever contacts with gold plating and a black thermoplastic polyester insulator. Operating within a temperature range of -40°C to 105°C, it complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Vertical through-hole mounting configuration for secure board integration
• Female cantilever contacts ensure reliable signal transmission
• Gold-plated terminals provide corrosion resistance and low contact resistance
• Compatible with single-edge non-specified card types

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment signal routing
• Automotive electronics module connections
• Consumer device internal circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm terminal type, plating thickness, and flange options. Ensure the target PCB layout matches the vertical mounting footprint and hole dimensions. Confirm compliance requirements such as RoHS3 status prior to final procurement approval.

Edgeboard Connectors Selection Notes

Select this component when a vertical orientation is required for single-edge card insertion. The 29-position count suits moderate density applications. Verify that the host card thickness falls within the specified 0.054 to 0.070 inch range to ensure proper mechanical engagement and electrical continuity.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and mounting styles. This specific model provides a balanced solution for general-purpose electronic assemblies needing reliable vertical connectivity between a motherboard and a plug-in card.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 29-position count, 2.54mm pitch, vertical mounting, and female contact type. Cross-reference with other manufacturers' vertical card edge connectors ensuring identical mechanical dimensions and electrical ratings are maintained.
