395-030-540-201

Edgeboard Connectors Overview

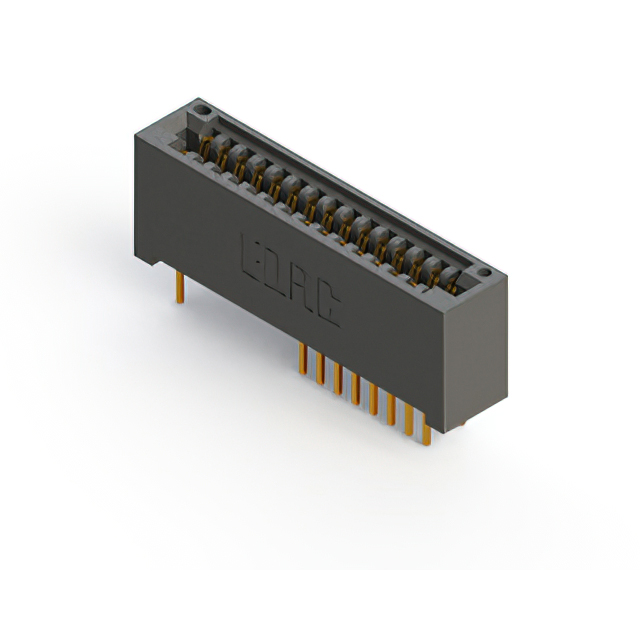

The EDAC Inc. 395-030-540-201 is a card edge connector designed for vertical through-hole mounting. It features 30 positions with a 0.100 inch (2.54mm) pitch and dual-edge contact configuration. The connector utilizes female contacts with gold plating and a black thermoplastic polyester insulator. It supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for reliable signal transmission
• Gold-plated contacts ensure corrosion resistance and low contact resistance
• Vertical through-hole termination for secure PCB integration
• Thermoplastic polyester insulator provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment signal routing
• Automotive electronics module connections
• Test and measurement instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm pin count, contact type, and flange configuration. Ensure compatibility with target board thickness specifications before procurement. Confirm RoHS compliance status matches project requirements. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when dual-edge connectivity is required for single-row circuit boards. Verify that the 0.100 inch pitch aligns with existing layout constraints. Consider the vertical mounting orientation for space-efficient designs. Evaluate the operating temperature range against environmental conditions. Confirm mechanical fit with enclosure mounting holes.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and contact configurations for diverse electronic applications. The 395-030 variant specifically addresses needs for moderate density interconnections in compact form factors.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 395 series parts with matching 30-position dual-edge specifications. Verify identical pitch, contact material, and mounting style before substitution. Consult manufacturer cross-reference lists for approved equivalents.
