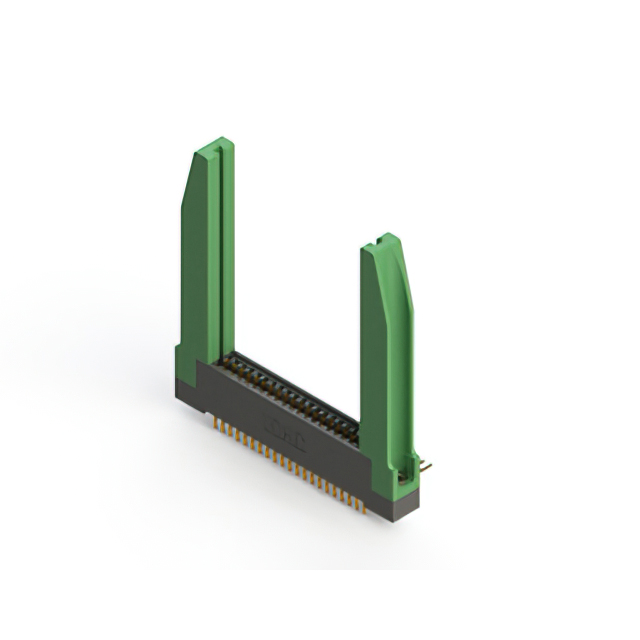

395-042-558-278 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 42POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 395-042-558-278
- Description：CONN EDGE DUAL FMALE 42POS 0.100
- Series：395
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：21
- Number of Positions：42
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Guides
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 395-042-558-278
Edgeboard Connectors Overview
The EDAC Inc. 395-042-558-278 is a dual female card edge connector featuring 42 positions with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it utilizes gold-plated contacts and a thermoplastic polyester insulator. The component supports a wide operating temperature range from -40°C to +105°C and complies with RoHS3 standards.
Edgeboard Connectors Feature Summary
- Dual female configuration with gold-plated cantilever contacts
- Through-hole termination for secure panel installation
- Thermoplastic polyester insulation for thermal stability
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Automotive electronics
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to ensure correct flange and termination specifications. Confirm that the requested variant matches the required board thickness and contact plating requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this connector when a dual-row interface is required for high-density signal routing. Ensure the mating card thickness falls within the specified tolerance range to guarantee reliable contact engagement and mechanical stability during operation.
Edgeboard Connectors Part Context
This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic interconnection needs across multiple industrial and commercial applications.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match the precise dimensional tolerances or contact material specifications required for critical applications.
