395-043-520-478

$12.47

Description：CONN EDGE SINGLE FML 43POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:3d109b9793f3 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-043-520-478 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 43POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-043-520-478

Description：CONN EDGE SINGLE FML 43POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：43
Number of Positions：43
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：Card Guides
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-043-520-478

395-043-520-478

Edgeboard Connectors Overview

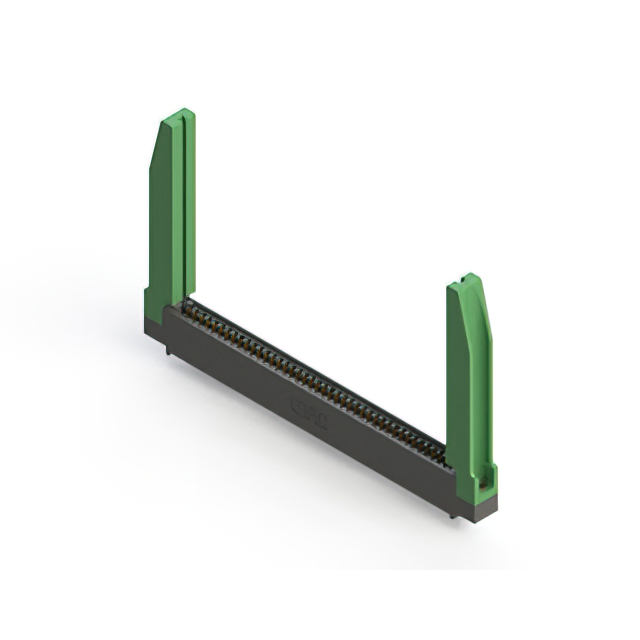

The EDAC Inc. 395-043-520-478 is a single-edge female card edge connector with 43 positions and a 0.100-inch (2.54mm) pitch. Designed for through-hole termination, it features gold-plated contacts and a black thermoplastic polyester insulator. The unit supports board thicknesses from 0.054 to 0.070 inches (1.37mm to 1.78mm). It includes top-mount flange openings with threaded inserts and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

Single-row female contact configuration for non-specified single-edge cards
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic polyester insulation provides thermal stability
Panel mount design with integrated flange features

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Test and measurement instrumentation
Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and flange specifications. Ensure compatibility with target PCB panel mounting requirements and verify that the selected variant meets all necessary environmental certifications for the intended deployment environment.

Edgeboard Connectors Selection Notes

Select this component when a single-edge interface with a 2.54mm pitch is required. Confirm that the mating card thickness falls within the specified 1.37mm to 1.78mm range. Evaluate the need for through-hole termination versus surface mount alternatives based on mechanical stress requirements and available board space constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination styles. The 395-065-544-407 serves as a similar single-edge alternative with different positioning. These components are widely used in modular electronic designs requiring robust interconnect solutions.
