395-066-540-208

Edgeboard Connectors Overview

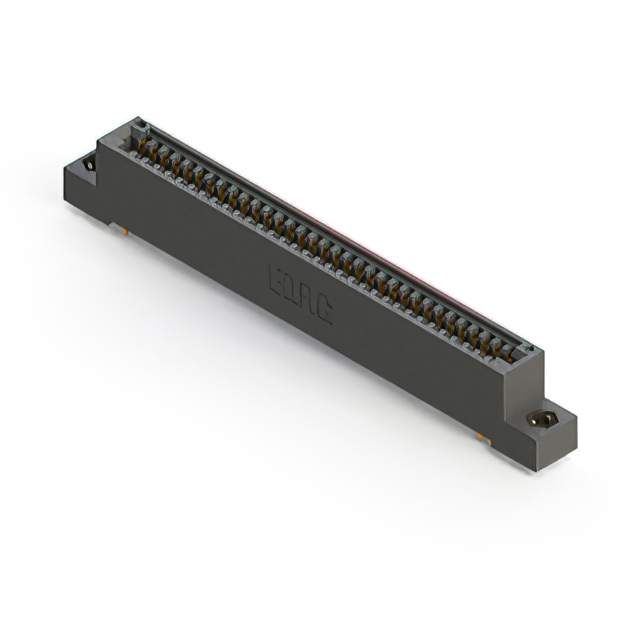

The EDAC Inc. 395-066-540-208 is a dual-edge card edge connector featuring 66 positions with a 0.100-inch (2.54mm) contact spacing. Designed for through-hole mounting, it utilizes gold-plated contacts to ensure reliable signal transmission. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a thermoplastic polyester insulator and copper alloy terminals, this component operates within a temperature range of -40°C to 105°C. It is part of the EDAC 395 series, providing a robust interconnection solution for standard card edge applications.

Edgeboard Connectors Feature Summary

• Dual-edge configuration with 66 female positions for comprehensive board connectivity
• Gold-plated terminal surfaces ensure durable electrical performance and corrosion resistance
• Thermoplastic polyester insulation provides structural stability and thermal endurance
• Through-hole termination method secures stable mechanical attachment to the host PCB

Edgeboard Connectors Applications

• Industrial control systems requiring standardized card edge interfaces
• Telecommunications equipment utilizing modular board architectures
• Automotive electronics demanding reliable high-density connections
• Test and measurement instrumentation needing secure peripheral integration

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and flange specifications. Ensure compatibility with target PCB thickness tolerances before procurement. Cross-reference manufacturer datasheets for accurate RoHS compliance status and environmental ratings. Confirm that the selected variant matches the required row spacing and mounting orientation for the intended assembly design.

Edgeboard Connectors Selection Notes

Select this model when a dual-sided connection is required for a 66-position interface with standard 0.100-inch pitch. Evaluate the operating temperature range to ensure suitability for the specific environmental conditions of the application. Consider the through-hole mounting style for its mechanical strength compared to surface-mount alternatives. Verify that the board thickness falls within the acceptable tolerance for optimal contact engagement and signal integrity.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic interconnection needs. These connectors are engineered for durability and consistent performance in demanding environments. The 395 series maintains industry-standard dimensions to facilitate easy integration into existing system designs and modular architectures.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Ensure any replacement matches the original pin count, pitch, and mounting style. Verify that substitute components meet identical electrical and mechanical specifications. Do not assume cross-compatibility without confirming detailed parameter alignment.
