395-088-520-207

Edgeboard Connectors Overview

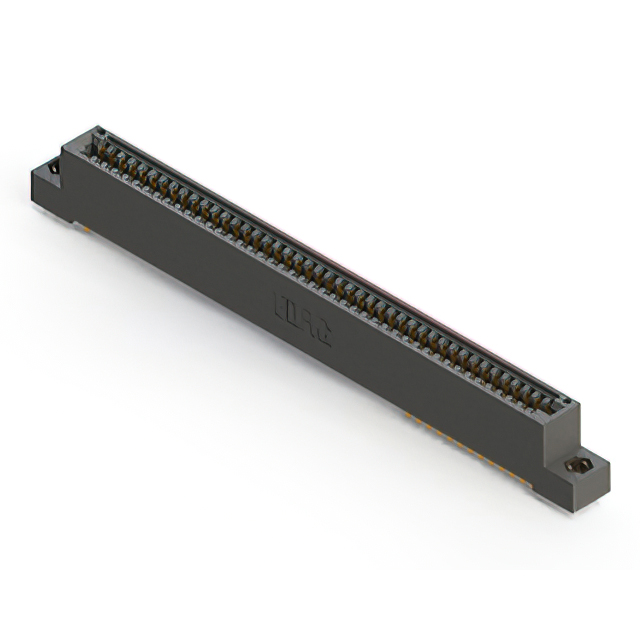

The EDAC Inc. 395-088-520-207 is a standard card edge connector designed for reliable signal transmission in electronic assemblies. It features an 88-position configuration with dual rows, providing a total of 88 contact points. The connector utilizes a 0.100-inch (2.54mm) pitch and accepts board thicknesses ranging from 0.062 to 0.093 inches. Constructed with copper alloy contacts featuring gold plating, it ensures low contact resistance and durability. The housing is made of black thermoplastic polyester, offering thermal stability and mechanical strength.

Edgeboard Connectors Feature Summary

• Dual-row female receptacle design for high-density interconnect applications
• Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance
• Thermoplastic polyester insulator provides thermal stability and structural integrity
• Panel mount installation style facilitates secure chassis integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted connections
• Communication equipment backplanes and interface modules
• Test and measurement instrumentation internal circuitry
• Automotive electronics control units and sensor interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination type and material specifications. Ensure compatibility with target PCB edge thickness and mounting hole dimensions prior to procurement. Cross-reference RoHS compliance status with current manufacturer declarations to meet regulatory requirements for the intended deployment region.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, panel-mount card edge connector is required for vertical or right-angle board insertion. Evaluate the 0.100-inch pitch against available routing space on the mating PCB. Confirm that the gold contact plating meets the environmental exposure conditions of the application. Consider the 88-position count relative to the system's I/O requirements and signal density needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors, which are widely used in industrial and commercial electronics. The series offers various position counts and mounting styles to accommodate diverse board-to-board and board-to-panel connection needs. The 395 series is known for its consistent performance across temperature ranges and mechanical stress conditions typical in professional hardware deployments.

Edgeboard Connectors Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Alternative solutions may require custom engineering or selection of similar EDAC series components with matching pitch and row configurations.
