395-122-523-201

Edgeboard Connectors Overview

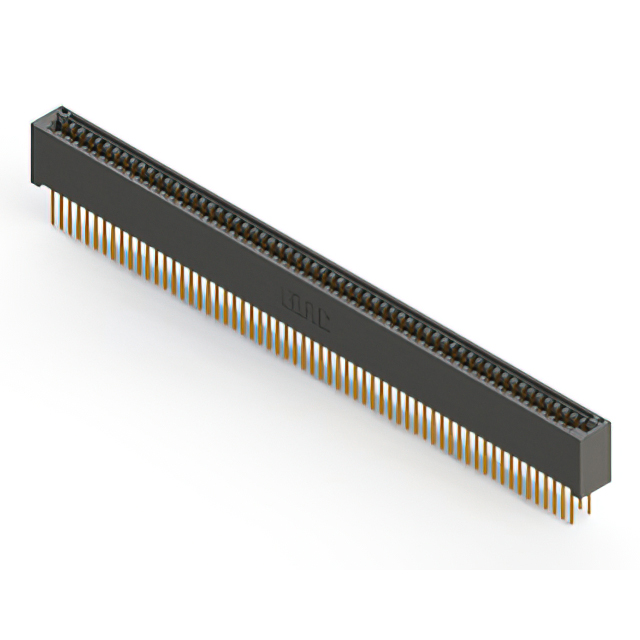

The EDAC Inc. 395-122-523-201 is a standard card edge connector featuring a dual female configuration with 122 positions. It utilizes a 0.100 inch (2.54 mm) pitch and is designed for vertical panel mounting. The contacts are gold-plated copper alloy, ensuring reliable signal transmission. The housing is constructed from black thermoplastic polyester, providing structural integrity and insulation. This component supports through-hole solder termination and is rated for operation within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated copper alloy terminals for corrosion resistance
• Vertical panel mount design with through-hole solder termination
• Black thermoplastic polyester housing material

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, plating thickness, and flange configuration. Ensure compatibility with target PCB stack-up dimensions and mating card edge thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a high-pin-count dual-sided connection is required in a vertical form factor. Confirm that the application environment stays within the specified -40°C to +105°C operating range. Validate that the PCB hole pattern matches the 2.54 mm pitch and that the panel cutout accommodates the vertical mounting style.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options. The 395-122-523-201 specifically addresses needs for robust, high-density connections in space-constrained vertical assemblies using standard industrial interface parameters.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC substitution guide for verified cross-references. Generic equivalents may not match the precise dimensional tolerances or gold plating specifications required for reliable performance in this specific dual-edge application.
