396-019-559-678

Edgeboard Connectors Overview

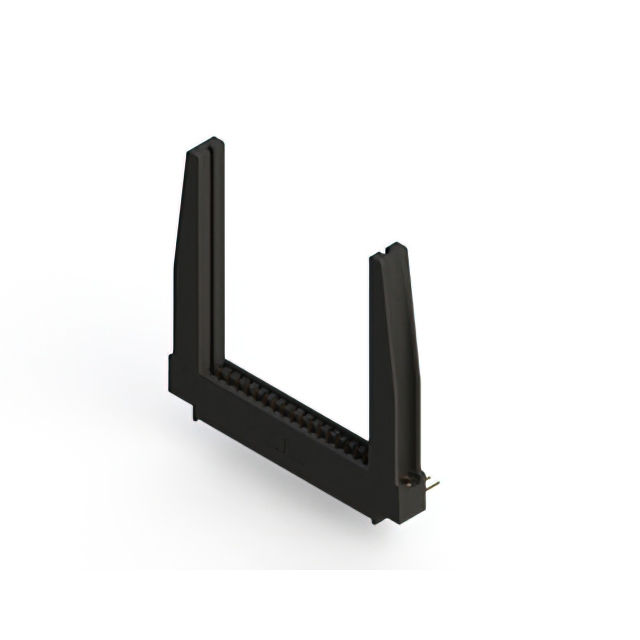

The EDAC Inc. model 396-019-559-678 is a standard single-row card edge connector designed for vertical board-to-board or board-to-cable interconnections. It features 19 positions with a contact spacing of 0.125 inches (3.18 mm). The unit utilizes gold-plated contacts to ensure reliable signal transmission and low contact resistance. The insulator body is black, providing visual identification and standard dielectric properties suitable for general electronic applications.

Edgeboard Connectors Feature Summary

• Single row configuration with 19 female contact positions
• Vertical mounting orientation for direct PCB insertion
• Gold-plated contact surfaces for enhanced conductivity
• Black insulator material for standard environmental protection

Edgeboard Connectors Applications

• General purpose electronic circuit board interconnects
• Industrial control system module connections
• Telecommunications equipment backplane interfaces
• Consumer electronics internal board assembly

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact termination style and flange options. Ensure compatibility with the target printed circuit board thickness and guide rail requirements before finalizing procurement orders. Cross-reference distributor part numbers to avoid discrepancies in packaging or accessory inclusion.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 19 channels is required. Confirm that the 0.125-inch pitch aligns with the mating card edge design. Evaluate thermal operating ranges against application demands, noting the specified limits. Consider mechanical stability needs regarding vertical mounting constraints and available space on the host PCB layout.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 396 series, which provides a range of standard card edge solutions. The series offers various position counts and termination styles to accommodate different density and routing requirements. It serves as a fundamental interconnect solution within EDAC's broader portfolio of board-level connection hardware.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 19-position count, 3.18mm pitch, and single-row vertical form factor. Verify that alternative manufacturers provide equivalent gold plating thickness and insulator material ratings. Ensure mechanical dimensions for mounting holes and card guide slots are identical to maintain fit without redesigning the host PCB.

Edgeboard Connectors FAQ

What is the contact spacing for this connector?

The contact spacing is 0.125 inches, which equals 3.18 millimeters.

How many rows of contacts does this model have?

This model features a single row of 19 contact positions.

What is the color of the insulator body?

The insulator body is black.
