396-066-541-803

Edgeboard Connectors Overview

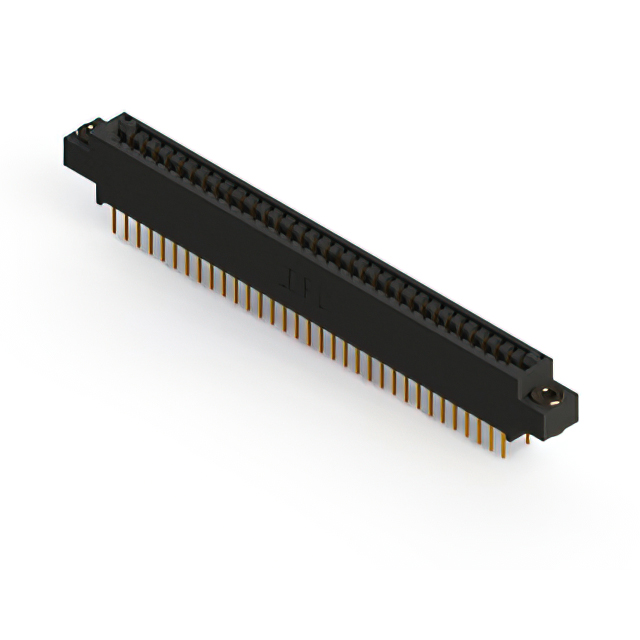

The EDAC Inc. part number 396-066-541-803 is a standard card edge connector designed for dual-edge mating applications. This component features a female contact configuration with a total of 66 positions. The connector utilizes a pitch spacing of 0.125 inches, which corresponds to 3.18 millimeters, ensuring compatibility with standard board thicknesses. The contacts are finished with gold plating to provide reliable electrical conductivity and corrosion resistance over repeated insertion cycles. The housing material is black, contributing to visual identification within complex assemblies. This vertical mount connector is engineered to interface securely with printed circuit boards that have conductive traces along both edges.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board retention
• Gold-plated contacts ensure reliable signal transmission
• Standard 0.125-inch pitch spacing for broad compatibility

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment internal module connections
• Communication infrastructure hardware assembly

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official documentation to confirm exact pin count and plating specifications. Ensure the ordering part number matches the required dual-edge configuration and pitch dimensions. Cross-reference the RoHS compliance status directly with the latest datasheet provided by EDAC Inc. before finalizing procurement orders to meet regulatory requirements.

Edgeboard Connectors Selection Notes

Select this connector when a dual-sided card edge interface is required for structural stability. The 66-position count suits moderate-density applications. Verify that the host PCB trace width aligns with the 0.125-inch pitch specification. Consider the gold plating requirement for environments where oxidation resistance is critical for long-term signal integrity.

Edgeboard Connectors Part Context

This component belongs to the EDAC 396 series of standard card edge connectors. The series offers various position counts and mounting styles to support diverse electronic packaging needs. EDAC provides these connectors as part of their broader portfolio of interconnect solutions, focusing on durability and precise mechanical fit for industrial and commercial electronics manufacturing.

Edgeboard Connectors Replacement Considerations

Direct replacement requires matching the 66-position count, 0.125-inch pitch, and dual-edge female configuration. Verify that any substitute part maintains identical housing dimensions and contact plating specifications to ensure mechanical and electrical compatibility without redesigning the host PCB layout.
