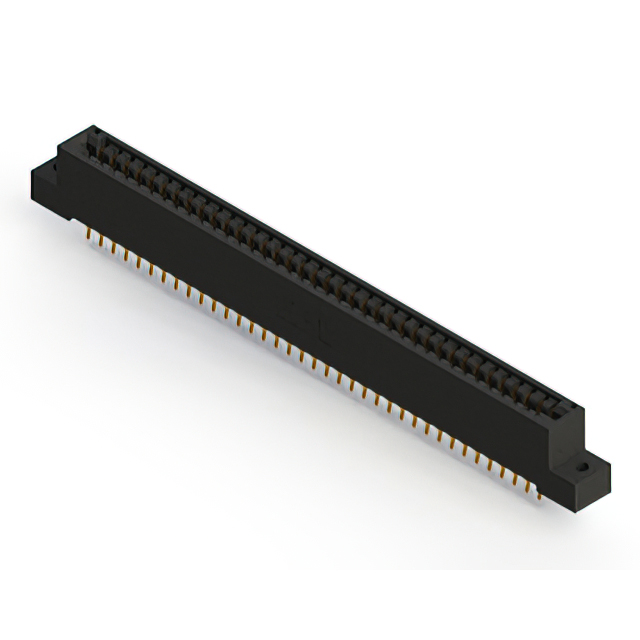

396-074-556-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 74POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 396-074-556-202
- Description：CONN EDGE DUAL FMALE 74POS 0.125
- Series：396
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：37
- Number of Positions：74
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.125" (3.18mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 396-074-556-202
Edgeboard Connectors Overview
The EDAC Inc. 396-074-556-202 is a dual female card edge connector featuring 74 positions with a 0.125-inch (3.18mm) pitch. Designed for through-hole mounting, it utilizes gold-plated contacts and a black thermoplastic insulator. The unit supports board thicknesses from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.
Edgeboard Connectors Feature Summary
- Dual-sided female contact configuration for secure board insertion
- Gold-plated terminal surfaces ensure reliable electrical conductivity
- Integrated flange features facilitate panel or chassis mounting
Edgeboard Connectors Applications
- Industrial control system interconnections
- Telecommunications equipment backplanes
- Automotive electronic module connections
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure that the ordering part number matches the required pin count and pitch dimensions for your target application. Cross-reference datasheet revisions to confirm compliance with current environmental standards before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a high-density connection with a 0.125-inch pitch is required for double-sided boards. It is suitable for applications demanding robust mechanical retention via flanges and reliable performance across wide industrial temperature ranges. Consider the through-hole termination method for permanent assembly needs.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 396 series, which specializes in standard card edge solutions. The series provides various position counts and termination styles to support diverse electronic integration requirements. The 396-074 variant specifically addresses mid-range density needs within this established product line.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternatives. Generic cross-references may not match critical dimensional tolerances or contact material specifications.
