424-041-520-112

Edgeboard Connectors Overview

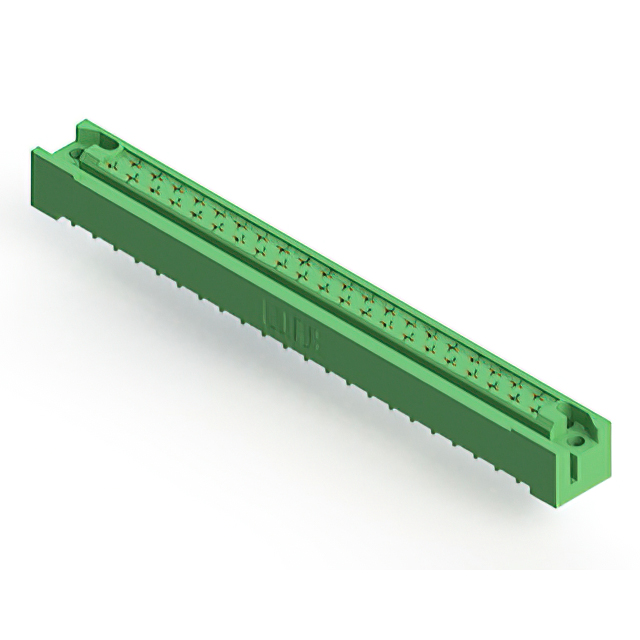

The EDAC Inc. 424-041-520-112 is a standard card edge connector socket featuring 41 positions with a 5.08 mm pitch and dual-edge contact configuration. Designed for through-hole vertical mounting, it accommodates a board thickness of 1.57 mm. The contacts are gold-plated copper alloy, housed in a green thermoplastic polyester body with flanges for secure panel installation.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for reliable signal transmission
• Gold-plated contacts ensure corrosion resistance and low contact impedance
• Integrated flanges provide stable mechanical retention during insertion

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Medical device circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating thickness and housing color variant. Ensure the selected part number matches the required board thickness tolerance of 1.57 mm. Confirm that the through-hole termination style aligns with the target PCB manufacturing capabilities before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density 41-position interface is required with a 5.08 mm spacing. It is suitable for applications demanding vertical orientation and robust mechanical stability provided by the flanged housing. Consider the gold plating for environments requiring long-term reliability without oxidation concerns.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 424 series of standard card edge connectors. The series offers various position counts and pitch options to support diverse electronic assembly requirements. The 424 series is characterized by its durable construction and compatibility with standard manufacturing processes for industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include the 424-041-541-112, which shares identical electrical and mechanical specifications but may differ in housing color or minor packaging details. Verify pin count and pitch compatibility before cross-referencing other manufacturers' equivalents.
