4300-002LF

Overview

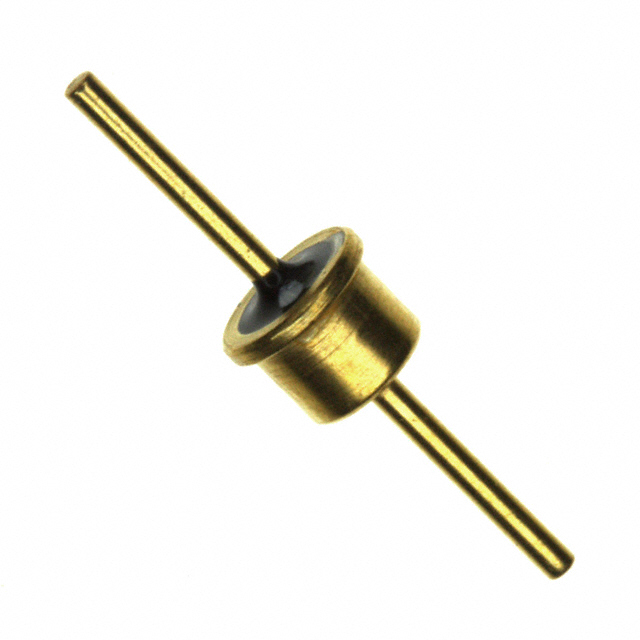

The 4300-002LF is a feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features an axial configuration with a rated voltage of 200V and a current rating of 5 A. The component operates within a temperature range of -55°C to +125°C and provides an insertion loss of 20dB at 100MHz.

Feature Summary

• Axial leaded construction for direct wire integration
• Feedthrough design for effective EMI suppression
• High thermal stability across extended temperature ranges

Applications

• Electromagnetic interference filtering in electronic circuits
• Power line conditioning for sensitive equipment
• Signal integrity protection in communication systems

Procurement Notes

Verify the specific datasheet version from Tusonix or CTS before ordering. Confirm that the axial package style matches your assembly requirements. Ensure the 200V rating and 5A current capacity are sufficient for your circuit's peak loads. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when axial mounting is preferred over panel mount options. The 200V rating suits moderate voltage applications where higher ratings are unnecessary. Consider the 5A current limit for power distribution lines. Verify insertion loss requirements against the 20dB specification at 100MHz.

Part Context

This part belongs to the 4300 series of EMI feedthrough filters from Tusonix. These components are designed for robust noise suppression in demanding environments. The axial format distinguishes it from discoidal or pillar variants in the broader product line.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer cross-reference guides for potential alternatives.
