Product Detailed Parameters
- Description：CAP FEEDTHRU 200V AXIAL
- Series：4300
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Bulk
- Voltage - Rated：200V
- Current：5:00 AM
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial
- Size / Dimension：0.156" Dia x 0.110" L (3.96mm x 2.79mm)
- Capacitance：-
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：10dB @ 1GHz
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：-
Download product information
Overview

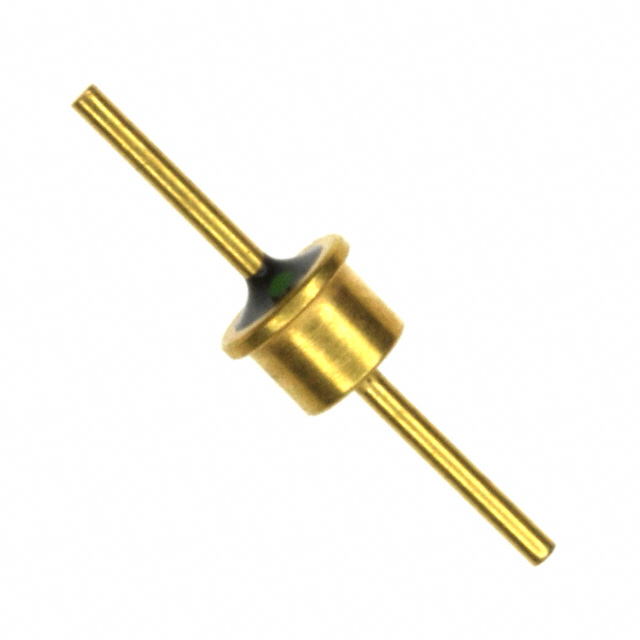

The Tusonix 4300-009LF is an axial lead-through capacitor designed for electromagnetic interference (EMI) filtering. It features a capacitance of 15,000 pF and a rated voltage of 50 V. The component supports a maximum DC current of 5 A and operates within a temperature range of -55°C to +125°C. Its physical dimensions are characterized by an axial package configuration.
Feature Summary
- Provides EMI suppression through feed-through architecture
- Supports high DC current handling capability
- Operates reliably across extended industrial temperature ranges
Applications
- Electromagnetic interference filtering in electronic circuits
- Power supply input/output noise reduction
- Signal line protection against conducted emissions
Procurement Notes
Verify the specific suffix requirements when ordering, as LF designations may indicate lead-free compliance status distinct from non-LF variants. Confirm RoHS compliance details directly with the manufacturer or authorized distributors, as regulatory status can vary between production batches and specific part number configurations. Ensure the selected variant matches the required environmental specifications for the intended application.
Selection Notes
Select this component when a 15,000 pF capacitance value is required at 50 V with axial mounting. Consider the 5 A current rating for power line applications. Compare against other series like 4300-022 for higher voltage ratings if system requirements exceed 50 V. Evaluate thermal performance needs against the -55°C to +125°C operating range.
Part Context
This component belongs to the Tusonix 4300 series of feed-through capacitors. Similar parts in this family include the 4300-022 and 4300-680, which share the axial package style but differ significantly in capacitance and voltage ratings. The series is designed for robust EMI suppression in compact axial form factors.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing circuit designs before considering alternative components from different manufacturers.
