4300-013LF

Overview

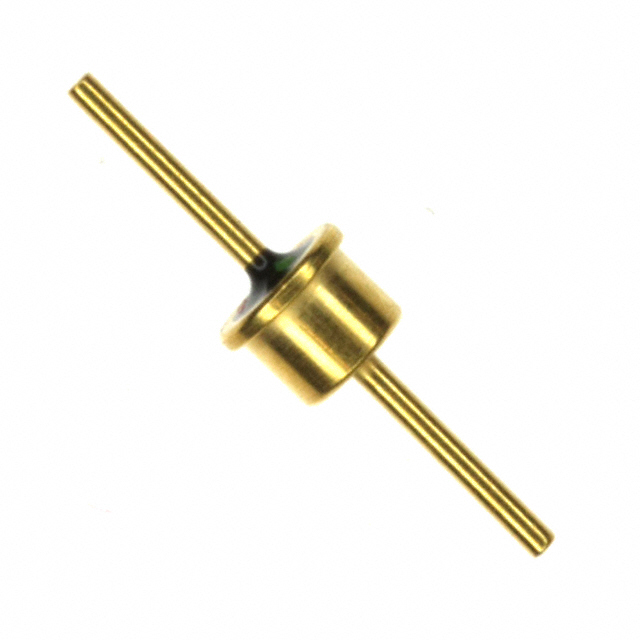

The Tusonix 4300-013LF is an axial feedthrough capacitor rated at 50V with a capacitance of 0.05 µF and a maximum current handling of 5 A. It operates within a temperature range of -55°C to +125°C. The component features an axial package with dimensions of 0.156 inches in diameter by 0.110 inches in length (3.96mm x 2.79mm). It belongs to the 4300 series and is currently active.

Feature Summary

• Provides EMI/RFI suppression through axial feedthrough architecture
• Supports high current loads up to 5 A
• Operates reliably across extended industrial temperature ranges

Applications

• Electromagnetic interference filtering in electronic circuits
• Power supply input/output stages requiring high current handling
• Signal line protection in sensitive communication equipment

Procurement Notes

Verify the specific suffix requirements for RoHS compliance, as standard 4300 series parts may differ from LF variants. Confirm lead times directly with authorized distributors due to potential manufacturing delays. Ensure the selected part matches the required voltage and current ratings for the specific application environment before finalizing procurement orders.

Selection Notes

Select this component when axial mounting is preferred for high-current applications requiring 50V rating. Compare against other 4300 series variants if different capacitance values or voltage ratings are needed. Ensure physical space accommodates the specified axial dimensions and verify thermal management capabilities for continuous 5 A operation.

Part Context

This component is part of the Tusonix 4300 series of feedthrough capacitors manufactured by CTS Electronic Components. The series offers various capacitance and voltage options within a standardized axial package format designed for robust EMI filtering in demanding electronic environments.

Replacement Considerations

Direct substitutes include the 4300-014 and 4300-014LF, which share identical electrical specifications and physical dimensions. Verify compatibility with existing PCB layouts and mounting hardware when considering these alternatives.
