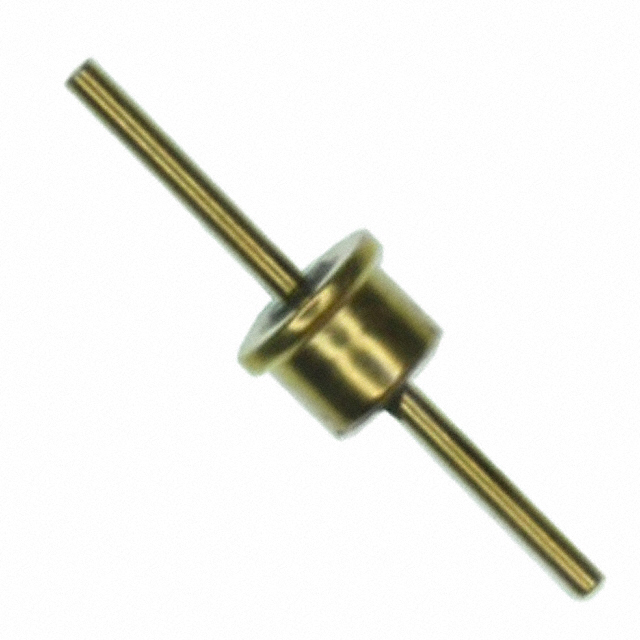

4300-681LF

$21.28

Description：CAP FEEDTHRU 200V AXIAL
Series：4300
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Tray

SKU:ea3221c55660 Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 200V AXIAL
Series：4300
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Tray
Voltage - Rated：200V
Current：5:00 AM
Operating Temperature：-55°C ~ 125°C
Mounting Type：-
Package / Case：Axial
Size / Dimension：0.156" Dia x 0.110" L (3.96mm x 2.79mm)
Capacitance：-
Tolerance：-
DC Resistance (DCR) (Max)：-
Insertion Loss：-
Temperature Coefficient：-
Ratings：-
Height (Max)：-
Thread Size：-

Download product information

4300-681LF

Overview

The Tusonix 4300-681LF is a feedthrough capacitor from the 4300 series, designed for axial mounting. It features a capacitance of 680 pF with a voltage rating of 200V and a maximum DC current handling of 5 A. The component operates within a temperature range of -55°C to +125°C. Its physical dimensions are 0.156 inches in diameter by 0.110 inches in length (3.96mm x 2.79mm). This part provides EMI suppression capabilities through its internal filtering structure.

Feature Summary

Axial leaded construction for panel or wire mounting
Feedthrough design for effective EMI/RFI attenuation
High current handling capability of 5 A
Wide operating temperature range

Applications

Power supply input filtering
Signal line noise suppression
Electronic equipment chassis grounding

Procurement Notes

Verify the specific suffix LF indicates lead-free compliance against the manufacturer's official datasheet. Confirm RoHS status as documentation may vary between standard and lead-free variants. Check for any specific environmental certifications required for your application. Ensure the axial package dimensions match your mechanical constraints. Validate the 200V rating against your circuit requirements.

Selection Notes

Select this component when axial feedthrough topology is required for low-capacitance filtering. The 680 pF value suits applications needing moderate high-frequency attenuation. Consider the 5 A current limit for power lines. Compare with other 4300 series values if different capacitance is needed. Verify thermal performance at maximum operating temperatures.

Part Context

Part of the Tusonix 4300 series of feedthrough capacitors. These components are engineered for electromagnetic interference suppression in electronic circuits. The series offers various capacitance values with consistent axial packaging. Designed for reliable performance in harsh environments.

Replacement Considerations

Check for direct substitutes within the 4300 series such as 4300-680 or 4300-682 if exact capacitance tolerance allows. Verify pin compatibility and mounting style before substitution.
