4304-000LF

Overview

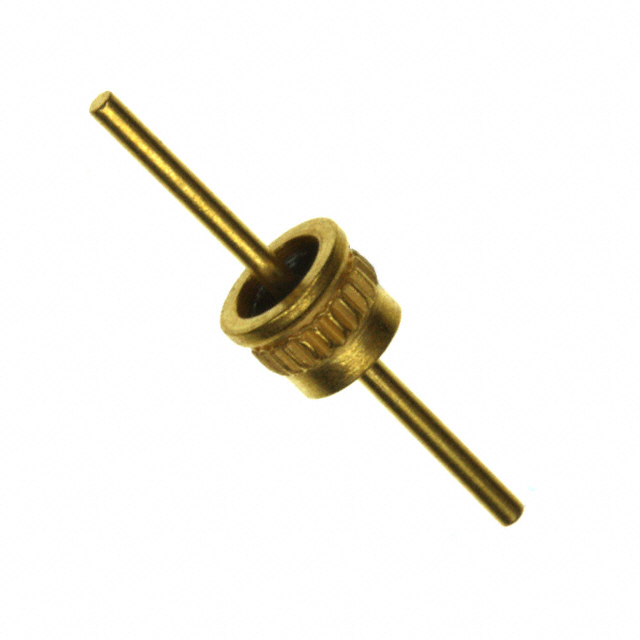

The Tusonix 4304-000LF is a feed-through capacitor rated at 200V with a capacitance of 10 pF. It supports a maximum current of 5 A and operates within a temperature range of -55°C to +125°C. The component features an axial, press-fit package with dimensions of 0.156 inches in diameter by 0.110 inches in length. It provides an insertion loss of 5 dB at 1 GHz and has a capacitance tolerance of 0% to +100%.

Feature Summary

• Provides electromagnetic interference filtering through feed-through architecture.
• Designed for press-fit mounting on panel or chassis surfaces.
• Operates reliably across extended industrial temperature ranges.

Applications

• Electromagnetic interference suppression in electronic enclosures.
• Power line filtering for high-frequency noise reduction.
• Signal integrity protection in sensitive communication equipment.

Procurement Notes

Verify the specific suffix requirements against official datasheets to ensure correct termination and compliance status. Confirm that the press-fit installation method aligns with your panel design specifications. Check RoHS3 compliance documentation if required for your manufacturing standards. Ensure the voltage and current ratings meet the operational demands of the target circuit application.

Selection Notes

Select this component when a low-capacitance feed-through filter is required for high-voltage applications. The axial press-fit form factor suits direct panel mounting scenarios. Consider the 5A current rating and 200V breakdown voltage for appropriate circuit protection. Evaluate the 10 pF value against the specific frequency attenuation needs of the system.

Part Context

This part belongs to the 4304 series of EMI feed-through filters manufactured by Tusonix. These components are designed for robust noise suppression in demanding environments. The series offers various capacitance values to suit different filtering requirements while maintaining consistent mechanical and electrical performance standards.

Replacement Considerations

Direct substitutes include other 10 pF, 200V axial feed-through capacitors from compatible manufacturers. Verify pin spacing and overall dimensions to ensure mechanical compatibility with existing panel cutouts. Electrical parameters such as insertion loss and current handling must match or exceed original specifications.

FAQ

What is the insertion loss specification for the 4304-000LF?

The component provides an insertion loss of 5 dB at 1 GHz.

What mounting style does this capacitor use?

It utilizes an axial, press-fit mounting style designed for panel installation.
