4306-005LF

Overview

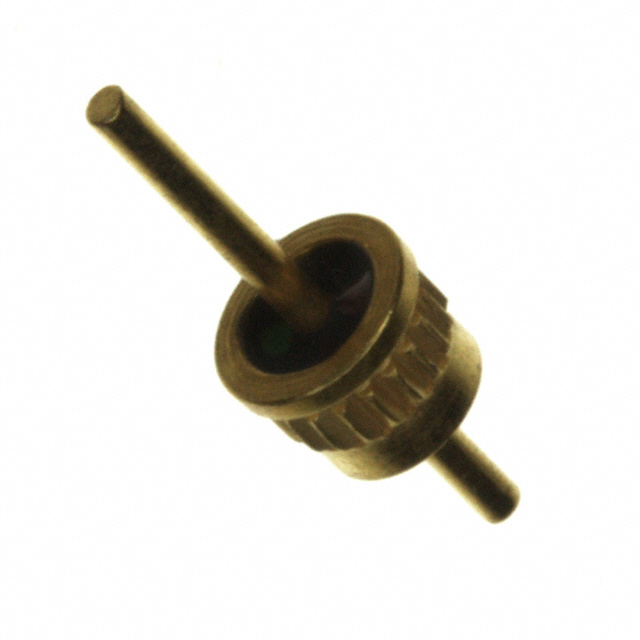

The 4306-005LF is a feedthrough capacitor from the Tusonix 4306 series, designed for electromagnetic interference (EMI) filtering. It features a capacitance of 50 pF with a voltage rating of 50 V and a current handling capacity of 5 A. The component utilizes an axial press-fit mounting style within a compact cylindrical package measuring 0.146 inches in diameter and 0.110 inches in length. It operates reliably across a temperature range of -55°C to +125°C.

Feature Summary

• Provides effective EMI suppression through high-frequency signal attenuation via its low-capacitance design.
• Supports robust mechanical integration using an axial press-fit configuration suitable for panel or chassis mounting.
• Maintains stable electrical performance under extreme thermal conditions ranging from -55°C to +125°C.

Applications

• Electromagnetic interference filtering in electronic enclosures
• Signal line protection in communication equipment
• Power supply input/output filtering in industrial control systems

Procurement Notes

Verify the specific suffix and tolerance requirements against the official datasheet before ordering. Confirm that the axial press-fit mounting method aligns with your PCB or panel design constraints. Ensure the 50V rating and 5A current capacity meet your circuit's operational demands. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when low capacitance values are required for high-frequency noise reduction without affecting signal integrity. The axial form factor is ideal for applications where space is limited but direct mounting is preferred over soldering. Consider the 50V rating and 5A current limit to ensure adequate safety margins for your specific application environment.

Part Context

This part belongs to the Tusonix 4306 series of feedthrough capacitors, which are engineered for EMI suppression in various electronic systems. The series offers multiple capacitance values and voltage ratings to suit different filtering needs. These components are widely used in industries requiring reliable noise filtration in compact spaces.

FAQ

What is the mounting style of the 4306-005LF?

The 4306-005LF uses an axial press-fit mounting style, allowing it to be secured directly into a panel or chassis hole.

What is the operating temperature range for this capacitor?

The operating temperature range for the 4306-005LF is from -55°C to +125°C.
