4306-013LF

Overview

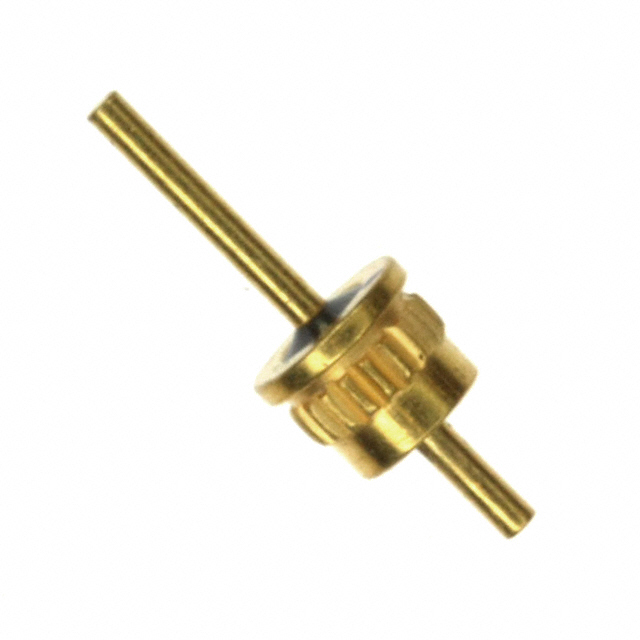

The Tusonix 4306-013LF is a feedthrough capacitor with a capacitance of 10 pF and a rated voltage of 200V. It supports a current rating of 5 A and operates within a temperature range of -55°C to 125°C. The component utilizes an axial, press-fit package with dimensions of 0.146 inches in diameter by 0.110 inches in length (3.71mm x 2.79mm).

Feature Summary

• Provides EMI/RFI suppression through high-frequency signal attenuation via a feedthrough architecture.
• Features a press-fit mounting style for secure installation into panel-mounted applications.

Applications

• Power supply input filtering
• Signal line noise suppression
• Panel-mounted electronic enclosures

Procurement Notes

Verify the specific tolerance requirements against official datasheets, as variations exist within the series. Confirm that the axial press-fit mechanical interface matches the host panel hole specifications. Ensure the 200V DC rating and 5A current capacity align with the circuit design parameters before finalizing procurement orders.

Selection Notes

Select this component when low capacitance values are required for high-frequency noise filtering in power or signal lines. The axial form factor and press-fit termination are suitable for chassis or panel mounting where robust mechanical connections are necessary. Compare against other series members if different capacitance or voltage ratings are needed.

Part Context

This part belongs to the Tusonix 4306 series of feedthrough capacitors. These components are designed for EMI/RFI suppression in various electronic systems. The manufacturer, Tusonix, is a subsidiary of CTS Electronic Components, specializing in passive filter solutions.

FAQ

What is the maximum operating temperature for the 4306-013LF?

The component is rated for operation up to 125°C.

Does the 4306-013LF support RoHS compliance?

Yes, the LF suffix indicates Lead-Free compliance with RoHS standards.
