4306-019LF

$21.28

Description：CAP FEEDTHRU 25PF 200V AXIAL
Series：4306
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk

SKU:4269db9c6b4e Category: Feed Through Capacitors Brand: Tusonix a Subsidiary of CTS Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CAP FEEDTHRU 25PF 200V AXIAL
Series：4306
Mfr：Tusonix a Subsidiary of CTS Electronic Components
Package：Bulk
Voltage - Rated：200V
Current：5:00 AM
Operating Temperature：-55°C ~ 125°C
Mounting Type：-
Package / Case：Axial, Press Fit
Size / Dimension：0.146" Dia x 0.110" L (3.71mm x 2.79mm)
Capacitance：25 pF
Tolerance：0%, +100%
DC Resistance (DCR) (Max)：-
Insertion Loss：10dB @ 1GHz
Temperature Coefficient：-
Ratings：-
Height (Max)：-
Thread Size：-

Download product information

4306-019LF

Overview

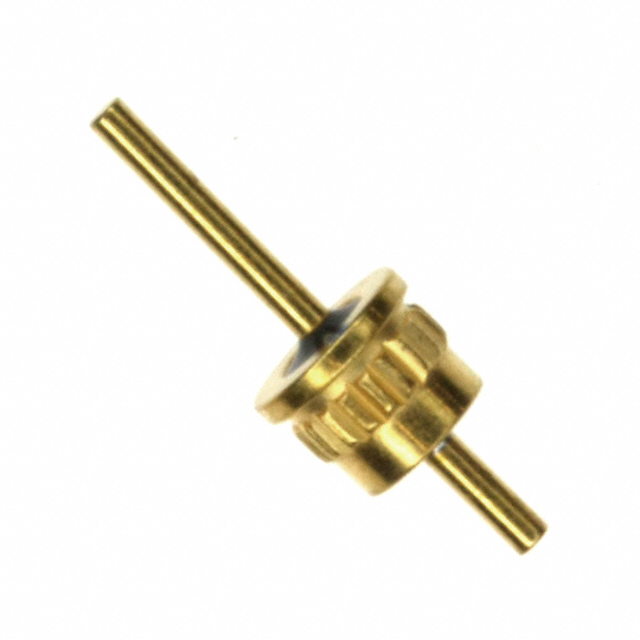

The 4306-019LF is a feedthrough capacitor from the Tusonix 4306 series, designed for electromagnetic interference filtering. It features a capacitance of 25 pF with a tolerance of 0% to +100%. The component is rated for 200 V and supports a maximum DC current of 5 A. It operates within a temperature range of -55°C to +125°C. The physical package is axial, press-fit style, with a diameter of 0.146 inches (3.71 mm).

Feature Summary

Provides EMI suppression through low-capacitance feedthrough design.
Supports high-current applications up to 5 A.
Ensures reliability across extreme temperatures from -55°C to +125°C.

Applications

Electromagnetic interference filtering in electronic circuits.
Power supply input/output stages requiring high current handling.
Military and aerospace systems operating in harsh environments.

Procurement Notes

Verify the specific manufacturer part number against official Tusonix or CTS documentation to confirm electrical ratings and mechanical dimensions. Ensure compatibility with existing panel cutouts for the axial press-fit package. Check RoHS compliance status if required by project specifications. Confirm lead times directly with authorized distributors as availability may vary.

Selection Notes

Select this component when a low capacitance value of 25 pF is required for high-frequency noise attenuation without affecting signal integrity. The 5 A current rating makes it suitable for power lines. The axial press-fit form factor simplifies mounting on chassis panels. Verify that the 200 V rating meets the system voltage requirements.

Part Context

This component belongs to the Tusonix 4306 series of EMI feedthrough filters. These components are engineered for robust performance in demanding environments. The series offers various capacitance values to suit different filtering needs while maintaining consistent mechanical and thermal characteristics.

Replacement Considerations

Consult official Tusonix substitution guides for verified alternatives. Generic equivalents may not match the precise capacitance tolerance or current handling capabilities. Ensure any substitute maintains the axial press-fit form factor and temperature range.
