4306-028LF

Overview

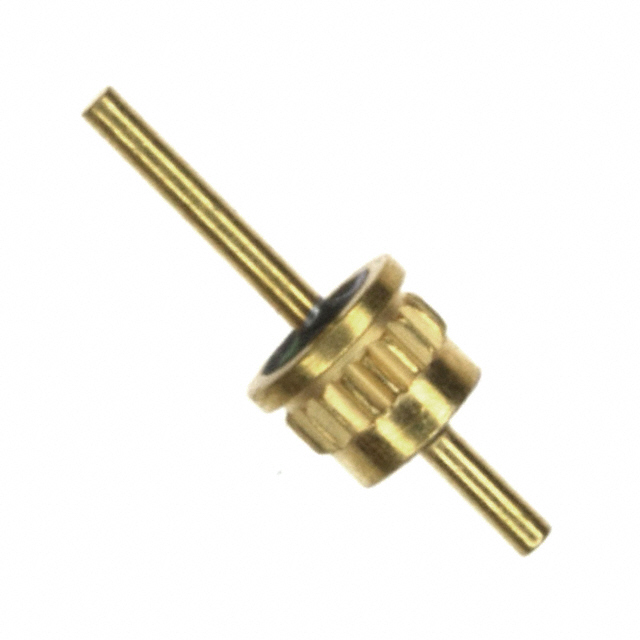

The 4306-028LF is a feedthrough capacitor manufactured by Tusonix, a subsidiary of CTS Electronic Components. It features a capacitance value of 10 pF with a rated voltage of 200 V and a maximum current rating of 5 A. The component operates within a temperature range of -55°C to +125°C and provides an insertion loss of 5 dB at 1 GHz. It utilizes an axial, press-fit package configuration.

Feature Summary

• Provides electromagnetic interference filtering through feedthrough capacitor technology
• Designed for axial press-fit mounting configurations
• Operates reliably across extended industrial temperature ranges

Applications

• Electromagnetic interference suppression in electronic circuits
• Signal line filtering applications requiring axial mounting
• Industrial equipment protection against high-frequency noise

Procurement Notes

Verify the specific manufacturer designation when sourcing this component, as it is produced by Tusonix, which operates as a subsidiary of CTS Electronic Components. Ensure that the ordering information explicitly references the full part number including the LF suffix to confirm lead-free compliance status according to RoHS standards. Confirm the axial press-fit package type matches the mechanical requirements of the target assembly before procurement.

Selection Notes

Select this component when a low-capacitance feedthrough filter is required for high-voltage signal lines. The 10 pF value suits applications needing minimal signal attenuation while providing noise suppression. The 200 V rating and 5 A current capacity define the electrical limits. Consider the axial press-fit form factor for panel-mount installations where space constraints favor this specific package style over bulk or reel options.

Part Context

This component belongs to the 4306 series of EMI feedthrough filters from Tusonix. The series includes various capacitance values and voltage ratings tailored for different filtering needs. The 4306-028LF specifically addresses scenarios requiring precise low-capacitance filtering with robust environmental tolerance capabilities consistent with the broader product family specifications.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
