Product Detailed Parameters
- Description：FILTER EMI 1.4 UF C TYPE
- Series：-
- Mfr：Tusonix a Subsidiary of CTS Electronic Components
- Package：Tray
- Voltage - Rated：-
- Current：15 A
- Operating Temperature：-55°C ~ 125°C
- Mounting Type：-
- Package / Case：Axial, Bushing, 1 Turret Lead
- Size / Dimension：0.385" Dia x 0.362" L (9.78mm x 9.20mm)
- Capacitance：1.4 µF
- Tolerance：-
- DC Resistance (DCR) (Max)：-
- Insertion Loss：-
- Temperature Coefficient：-
- Ratings：-
- Height (Max)：-
- Thread Size：1/4"-28
Download product information
Overview

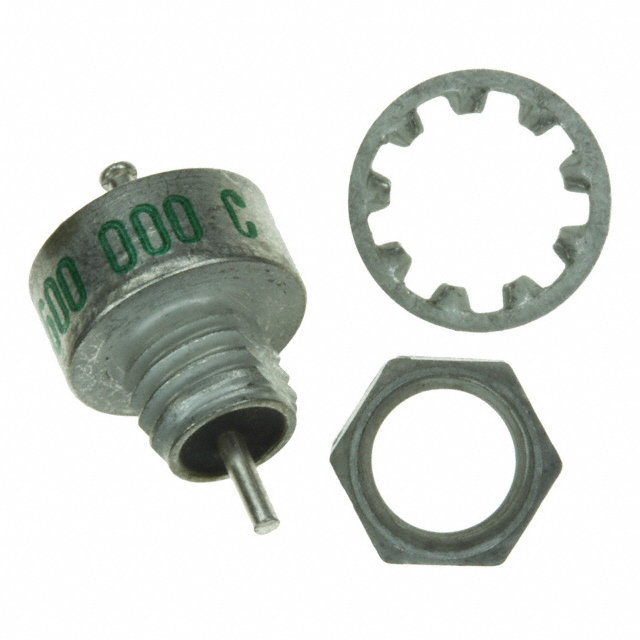

The 4600-000LF is a feedthrough capacitor from the Tusonix 4600 series, designed for electromagnetic interference suppression. It features a capacitance of 1.4 µF with a voltage rating of 100 VDC at 85°C. The component utilizes an axial bushing package with one turret lead and supports a current rating of 15 A. Operating temperatures range from -55°C to +125°C. It complies with RoHS3 standards and carries an MSL rating of 1.
Feature Summary
- Provides effective electromagnetic interference filtering through high-capacitance feedthrough design
- Features robust axial bushing construction suitable for panel mounting applications
- Supports high current handling capabilities for power line protection
Applications
- Power supply input filtering in electronic equipment
- Electromagnetic interference suppression in industrial control systems
- Signal conditioning for sensitive measurement instruments
Procurement Notes
Verify the specific voltage derating requirements against your application's operating temperature, as the 100V rating is specified at 85°C. Confirm that the axial bushing mounting style aligns with your chassis or panel design constraints. Ensure compliance with RoHS3 regulations if required by your project specifications before finalizing procurement.
Selection Notes
Select this component when high capacitance values are required for low-frequency noise attenuation on power lines. The axial bushing form factor is ideal for direct panel penetration mounting. Consider the 15A current rating to ensure adequate headroom for your circuit's maximum load conditions during normal operation.
Part Context
This part belongs to the Tusonix 4600 series of feedthrough capacitors, which are engineered for EMI/RFI suppression. The series offers various capacitance and voltage combinations within an axial bushing package. These components are widely used in environments requiring reliable noise filtration for both power and signal lines.
Replacement Considerations
Publicly confirmed substitute part numbers for 4600-000LF were not found in the provided documentation. Verify compatibility with existing designs before considering alternative manufacturers or series.
