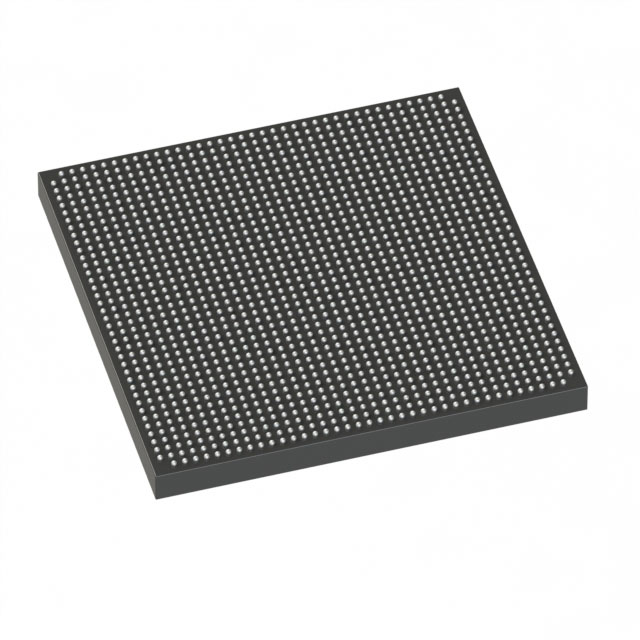

5SGSED6K1F40C2G

Overview

The Altera 5SGSED6K1F40C2G is a Stratix V GS Field Programmable Gate Array (FPGA) designed for high-performance logic applications. It features 583,000 Logic Elements and 220,000 Adaptive Logic Modules within a 1517-ball FCBGA package. The device integrates 46,080,000 bits of embedded memory and supports 696 I/O pins. It operates with a core supply voltage range of 0.87V to 0.93V and functions reliably across an industrial temperature range of 0°C to 85°C junction temperature.

Feature Summary

• High-density architecture with 583,000 LEs and 220,000 ALMs
• Large embedded memory capacity of 46.08 Mbits
• 696 available I/O pins for complex system integration
• Industrial operating temperature range up to 85°C TJ

Applications

• Telecommunications infrastructure equipment
• Enterprise networking switches and routers
• Industrial automation control systems
• Test and measurement instrumentation

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm temperature grade and speed bin requirements. Confirm RoHS compliance status and moisture sensitivity level (MSL 3) prior to PCB assembly planning. Ensure ordering quantities align with manufacturer standard packaging constraints.

Selection Notes

Select this component when high logic density and substantial embedded memory are required within a Stratix V GS form factor. Compare total LE counts and I/O availability against alternative models in the 5SGS series to ensure pin compatibility and resource sufficiency for the target design complexity.

Part Context

This part belongs to the Stratix V GS family, which targets cost-sensitive high-volume applications compared to the GX or GT variants. The 5SGSED6K designation indicates a specific die size and performance tier within the broader Stratix V portfolio, sharing architectural similarities with other devices in the same generation.

Replacement Considerations

Direct pin-to-pin replacements within the same package may include other 5SGSED6K variants with different suffixes indicating speed grades or temperature ranges. Verify functional equivalence before substitution.
