5SGXEA7H3F35C4WN

Overview

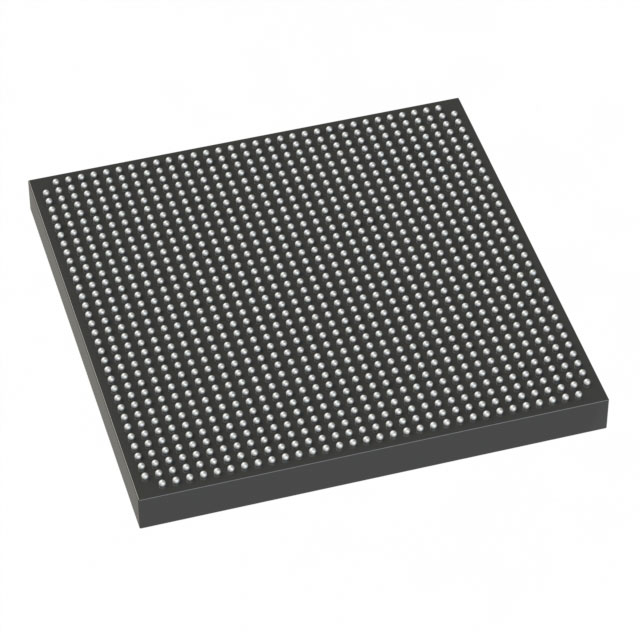

The Altera 5SGXEA7H3F35C4WN is a Stratix V GX Field Programmable Gate Array (FPGA) belonging to the 5SGXA7 series. It features 622,000 logic elements and 234,720 Adaptive Logic Modules (ALMs). The device includes 552 I/Os and 24 transceivers supporting data rates up to 14.1 Gb/s. Embedded memory totals approximately 57.16 Mbit. It operates at a core voltage of 0.82V to 0.88V and is housed in a 1152-pin FCBGA package measuring 35x35 mm.

Feature Summary

• High-density programmable logic fabric with extensive embedded memory resources for complex system integration.
• High-speed serial transceivers enabling multi-gigabit data transmission for advanced communication interfaces.
• Surface-mount packaging designed for robust thermal performance and high pin-count connectivity.

Applications

• High-performance networking infrastructure equipment
• Industrial automation control systems
• Test and measurement instrumentation

Procurement Notes

Verify component authenticity through authorized channels due to potential supply chain variations. Confirm RoHS compliance status and moisture sensitivity level prior to assembly. Check for specific manufacturing date codes and lot traceability requirements. Ensure storage conditions meet JEDDEC standards to prevent humidity damage before reflow soldering processes begin.

Selection Notes

Compare against other Stratix V GX variants based on required logic density and transceiver count. Evaluate power consumption profiles against available cooling solutions. Consider the 1152-pin footprint constraints during PCB layout planning. Verify software compatibility with Quartus Prime design tools for optimal configuration and timing closure.

Part Context

This component is part of the Altera Stratix V GX family, targeting high-bandwidth applications requiring significant parallel processing capabilities. The 5SGXA7 designation indicates a specific silicon generation within the broader Stratix portfolio. It serves as a successor to previous high-end FPGA generations, offering improved efficiency and feature sets for demanding digital signal processing tasks.

Replacement Considerations

Direct substitutes include the 5SGXEA7H2F35C3N and 5SGXEA7H2F35I3, which share similar logic densities and package types. Cross-reference pinouts and electrical specifications carefully when evaluating alternative part numbers from the same manufacturer family.
