626L15003IMT

Oscillators Overview

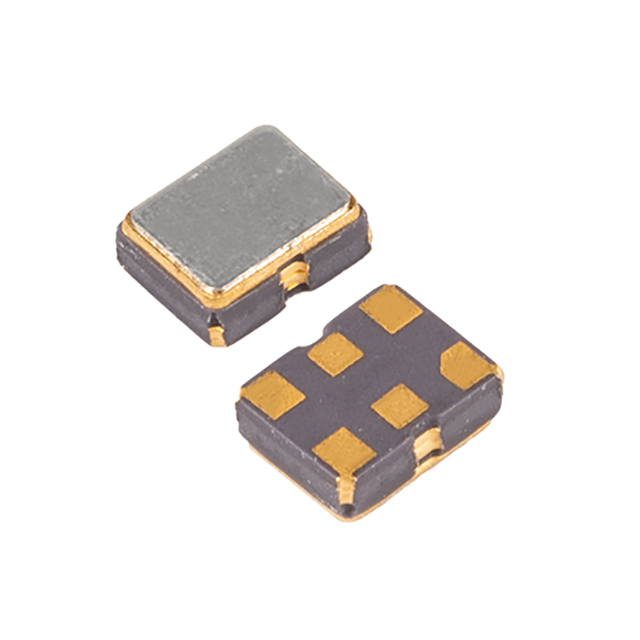

The CTS 626L15003IMT is a standard surface-mount LVDS clock oscillator operating at 150.000000MHz. It functions within a 1.7V to 1.89V supply range, drawing a maximum current of 7mA. The device features a 2.5mm x 2.0mm x 1.1mm ceramic package with six terminals. It provides a frequency stability of 50ppm and maintains a maximum phase jitter of 500fs. The unit supports operation across a temperature range of -40°C to +85°C and includes an enable function on Pin 1.

Oscillators Feature Summary

• Ultra-low phase jitter performance for high-speed data integrity
• Compact ceramic surface mount package design
• Integrated output enable control functionality

Oscillators Applications

• Serial Rapid IO (SerDes) interfaces
• Storage Area Networking systems
• SONET/SDH and DWDM transmission equipment
• Ethernet and Gigabit Ethernet connections

Oscillators Procurement Notes

Verify the specific ordering suffix against official documentation to confirm voltage and tolerance variants. Ensure the requested part matches the exact frequency and stability requirements. Confirm RoHS compliance status prior to finalizing procurement orders. Validate that the component meets the required thermal operating conditions for the target application environment.

Oscillators Selection Notes

Select this model when low jitter is critical for signal integrity in high-frequency digital circuits. The 1.8V supply requirement dictates compatibility with low-voltage logic families. Verify that the 50ppm stability aligns with system timing budgets. Consider the small footprint for dense PCB layouts requiring minimal spatial allocation.

Oscillators Part Context

This component belongs to the CTS 626 series of standard oscillators. The series utilizes fundamental or third overtone crystal designs. These devices are engineered for applications demanding precise timing signals. The family supports various output formats including LVDS and LVPECL.
