6GK57956MP000AA0

Overview

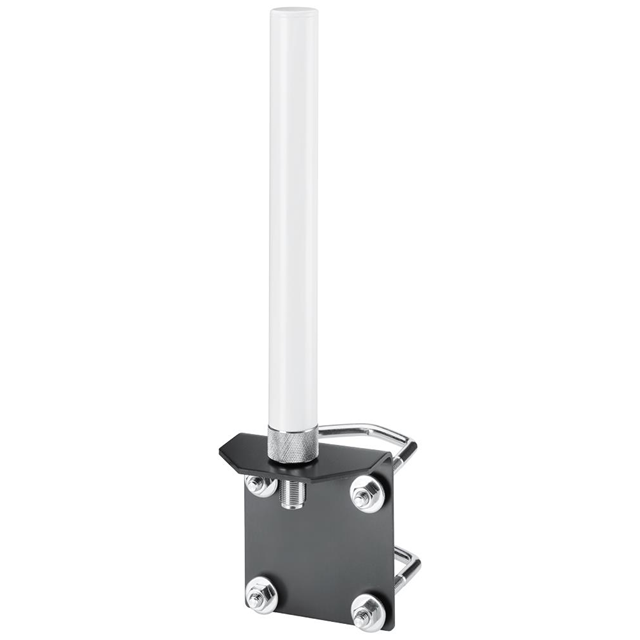

The Siemens 6GK57956MP000AA0 is an IWLAN antenna model ANT795-6MP designed for dual-band wireless communication. It operates across 2.4 GHz and 5 GHz frequency ranges, ensuring compliance with national approvals. The unit features an N-Female plug connector and provides a gain of 5/7 dBi. It supports wall or mast mounting and maintains an IP65/IP67 rating within a temperature range of -40 to +80 °C.

Feature Summary

• Dual-band operation supporting 2.4 GHz and 5 GHz Wi-Fi frequencies
• N-Female connector interface for secure attachment
• Robust environmental protection rated IP65 and IP67
• Wide operational temperature tolerance from -40 °C to +80 °C

Applications

• Wall mounting for industrial wireless networks
• Mast mounting for elevated signal coverage
• IWLAN infrastructure deployment in harsh environments

Procurement Notes

Verify the specific part number against official Siemens documentation to ensure compatibility with existing ANT795 systems. Confirm that the N-Female connector matches your cable assembly requirements. Check current lifecycle status as some sources indicate obsolescence. Ensure local regulatory approvals align with the intended installation region before procurement.

Selection Notes

Select this component when dual-band 2.4/5 GHz connectivity is required for IWLAN applications. Choose based on the need for high ingress protection (IP65/IP67) in outdoor or industrial settings. Consider the N-Female interface for standard cabling. Evaluate the 5/7 dBi gain profile against site-specific coverage needs and mounting constraints.

Part Context

This antenna belongs to the Siemens SIMATIC NET IWLAN product family, specifically the ANT795 series. It serves as a critical RF component for establishing reliable wireless links in industrial automation environments. The model integrates compact design principles suitable for space-constrained installations while maintaining robust performance standards.

Replacement Considerations

Public data indicates the 6GK57956MP000AA0 may be obsolete. Verify availability of direct substitutes through Siemens support channels. Cross-reference technical specifications such as connector type, gain, and frequency bands when evaluating alternative models to ensure system compatibility.
