Product Detailed Parameters
- Description：RF ANT 739MHZ BLADE SMA MALE ADH
- Series：SmartBlade™ LTE
- Mfr：Amphenol PCTEL
- Package：Box
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：739MHz, 875MHz, 1.4685GHz, 1.94GHz, 2.445GHz, 3.6GHz
- Frequency Range：698MHz ~ 780MHz, 790MHz ~ 960MHz, 1.427GHz ~ 1.51GHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz
- Antenna Type：Blade
- Number of Bands：6
- VSWR：2, 2.2, 3
- Return Loss：-
- Gain：1.5dBi, 2.5dBi, 3dBi, 4.5dBi, 5.5dBi, 2.5dBi
- Features：Cable - 2.5m
- Termination：SMA Male
- Ingress Protection：IP65
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.173" (4.40mm)
- Applications：2G, 3G, 4G, 5G, LTE
- Power - Max：10 W
Download product information
Overview

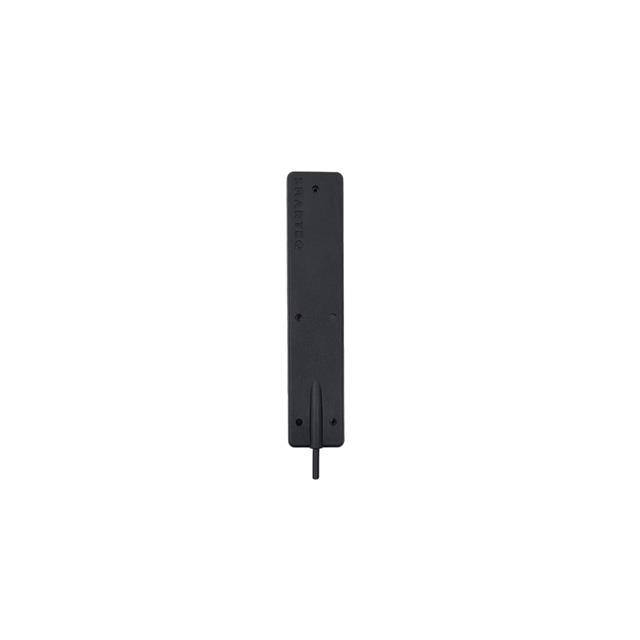

The Amphenol PCTEL 710418 is a SmartBlade RF antenna module designed for broadband wireless applications. It operates within frequency ranges covering 2G, 3G, 4G, and 5G LTE bands. The component features an adhesive mounting type with a maximum height of 0.173 inches (4.40mm). It provides gain levels ranging from 1.5dBi to 5.5dBi and supports a maximum power rating of 10W. The unit is RoHS3 compliant and rated for an operating temperature range of -40°C to +85°C.
Feature Summary
- Compact low-profile design suitable for space-constrained installations
- Broadband coverage supporting multiple cellular generations including 5G
- IP67 environmental protection rating for durability
- Adhesive mounting method for secure attachment
Applications
- Commercial vehicle tracking systems
- Precision navigation devices
- Time synchronization equipment
- IoT sensor networks
Procurement Notes
Verify the specific gain variant required, as the series offers options between 1.5dBi and 5.5dBi. Confirm that the adhesive mounting style aligns with the installation surface requirements. Ensure the operating temperature range of -40°C to +85°C meets the environmental conditions of the target deployment site. Check RoHS3 compliance status if restricted substances are a concern for the project specifications.
Selection Notes
Select this model when a low-profile, omnidirectional solution is needed for mobile or fixed broadband deployments. The adhesive mount simplifies integration compared to threaded alternatives. Consider the specific gain requirement, as higher gain variants may offer better range but could have different physical dimensions. Ensure the 10W power handling capacity is sufficient for the transmitter output in the intended application scenario.
Part Context
This component belongs to the SmartBlade family of antennas from Amphenol PCTEL. These antennas are engineered for reliable wireless connectivity across critical infrastructure and mobile platforms. The series is known for its robust construction and wide frequency coverage, making it suitable for diverse telecommunications standards.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. Alternative solutions must be evaluated based on matching frequency ranges, gain specifications, mounting type, and environmental ratings.
