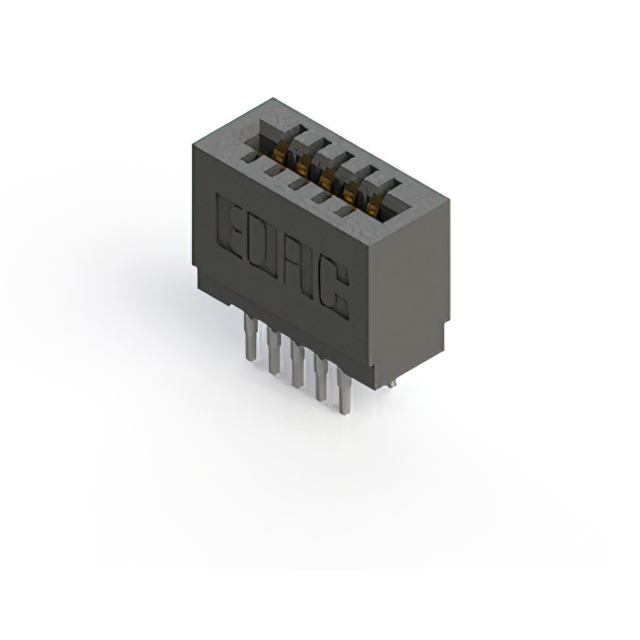

725-010-545-201

$3.19

Description：CONN EDGE DUAL FMALE 10POS 0.100
Series：725
Mfr：EDAC Inc.
Package：Box

SKU:59c4619768cc Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

725-010-545-201 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 10POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 725-010-545-201

Description：CONN EDGE DUAL FMALE 10POS 0.100
Series：725
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：5
Number of Positions：10
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Press-Fit, Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：30.0µin (0.76µm)
Contact Type：Cantilever
Color：Black
Flange Feature：-
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 725-010-545-201

725-010-545-201

Edgeboard Connectors Overview

The EDAC Inc. 725-010-545-201 is a dual-edge female card edge connector designed for through-hole mounting. It features 10 positions with a 0.100-inch (2.54mm) pitch across two rows. The contacts are made of copper alloy with gold plating and utilize a cantilever contact type. The housing is black thermoplastic polyester, rated for operation between -40°C and 105°C. It accepts board thicknesses from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

Dual-edge female configuration for non-specified double-sided cards
Gold-plated cantilever contacts ensure reliable signal transmission
Thermoplastic polyester insulation provides thermal stability
Through-hole termination supports wire wrap or crimp processes

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interconnects
Consumer electronics module connections
Automotive electronic circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 725 Series Ordering Guide to confirm terminal style and plating specifications. Ensure compatibility with the target PCB panel thickness range of 0.054 to 0.070 inches. Confirm RoHS3 compliance status if required by project regulations before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, dual-edge solution is required for standard 0.100 inch pitch applications. The cantilever contact design facilitates easy insertion and extraction of edge cards. Verify that the wire wrap termination method aligns with the assembly process capabilities and that the operating temperature range meets environmental requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 725 series of standard card edge connectors. The series offers various position counts and termination options. The 725-010 variant specifically addresses compact connection needs with ten contacts per side. It is distinct from press-fit or high-temperature specialized variants within the broader EDAC portfolio.
