746-018-545-101

Edgeboard Connectors Overview

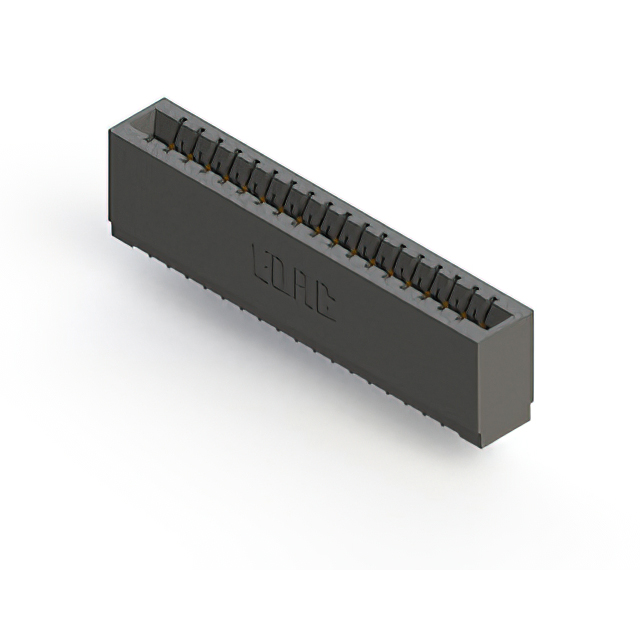

The EDAC Inc. 746-018-545-101 is a single-row card edge connector designed for press-fit installation onto printed circuit boards. It features 18 female contacts with a 0.125-inch (3.18mm) pitch and a 0.250-inch (6.35mm) row spacing. The connector utilizes cantilever contacts with gold plating, specifically 30.0µin (0.76µm) thickness, over copper alloy terminals. It accommodates card thicknesses between 0.054 inches and 0.070 inches (1.37mm to 1.78mm). The housing is black thermoplastic polyester, rated for operation from -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-row configuration with 18 female positions for standard card edge applications
• Press-fit termination method eliminates soldering requirements during assembly
• Gold-plated cantilever contacts ensure reliable electrical connection and durability
• Thermoplastic polyester insulation provides structural stability across wide temperature ranges

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Computing hardware module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current 746 Series Ordering Guide to confirm exact contact length, plating specifications, and mounting style variations. Ensure compatibility with target PCB hole patterns and card thickness tolerances before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, non-soldered connection is required for high-reliability environments. Confirm that the application board supports press-fit technology and that the 0.125-inch pitch aligns with the mating card edge design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 746 series of standard card edge connectors. The series offers various configurations including single and dual rows with different pin counts. The 746-018-545-101 represents a specific variant within this family optimized for single-row press-fit integration.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 746 Series cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical pitch, row count, and press-fit mechanical specifications.
