746-034-553-606

Edgeboard Connectors Overview

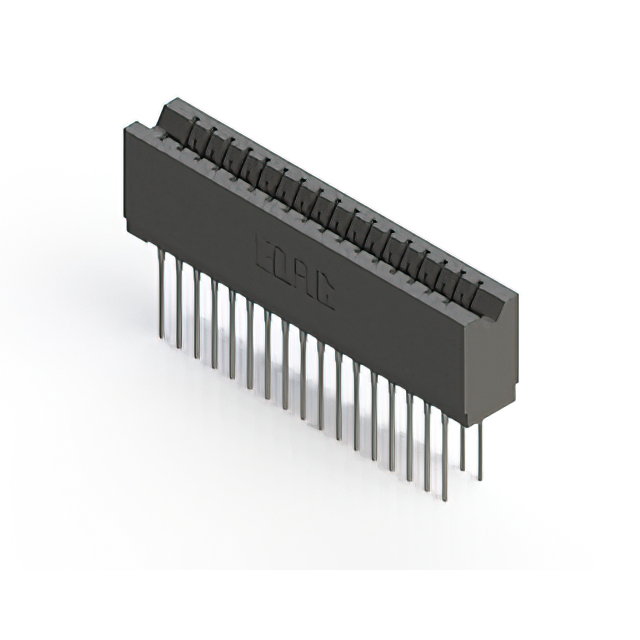

The EDAC Inc. 746-034-553-606 is a dual-edge female card edge connector with 34 positions and a 0.125-inch (3.18mm) pitch. It features gold-plated contacts, a black thermoplastic polyester housing, and operates within a temperature range of -40°C to 105°C. Designed for through-hole mounting, it accommodates board thicknesses from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified card types
• Gold-plated cantilever contacts for reliable signal transmission
• Thermoplastic polyester insulation for thermal stability

Edgeboard Connectors Applications

• High-density electronic interconnects
• Industrial control systems
• Telecommunications equipment

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC 746 Series Ordering Guide to ensure compatibility with required termination methods and environmental ratings. Confirm that the 34-position count matches the design requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with a 0.125-inch pitch is required. Ensure the target PCB thickness falls within the 0.054 to 0.070-inch range to guarantee proper mechanical engagement and electrical contact integrity during assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 746 series of standard card edge connectors. The series offers various position counts and configurations, utilizing copper alloy contacts and gold plating for durability in demanding industrial environments.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 746 Series Ordering Guide for direct substitutes with different position counts or termination styles. Verify pinout and dimensional compatibility before replacing with other series components.
