746-084-520-201

Edgeboard Connectors Overview

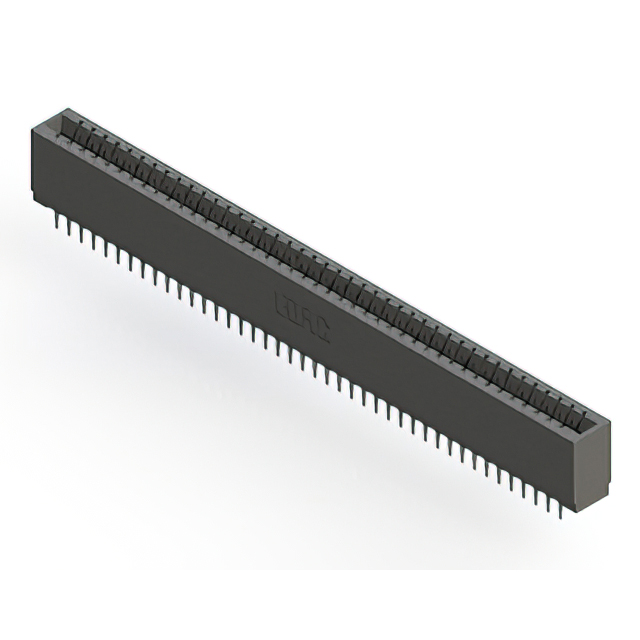

The EDAC Inc. 746-084-520-201 is a dual female card edge connector designed for vertical board-to-board interconnection. It features 84 positions with a 0.125-inch (3.18mm) pitch, accommodating card thicknesses between 0.054 and 0.070 inches. The contacts are gold-plated copper alloy with a 30.0µin thickness, utilizing a cantilever spring design for reliable engagement. Rated for operation from -40°C to 105°C, it employs a thermoplastic polyester insulator and supports through-hole termination via crimp or wire wrap methods.

Edgeboard Connectors Feature Summary

• Dual-sided female contact configuration for robust edgeboard insertion
• Cantilever spring contact design ensures secure mechanical retention
• Gold-plated terminals provide corrosion resistance and stable conductivity
• Thermoplastic polyester insulation supports high-temperature environments

Edgeboard Connectors Applications

• Vertical circuit board interconnects
• Edgeboard module connections
• Industrial control system backplanes
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact pin count, plating specifications, and termination style. Ensure compatibility with target PCB hole sizes and card thickness tolerances before procurement. Confirm RoHS compliance status if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided female connector with a 0.125-inch pitch is required for vertical mounting. Consider the 84-position capacity and cantilever contact type for applications needing reliable edgeboard retention. Verify that the operating temperature range and insulation material meet environmental requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 746 series of standard card edge connectors. The series offers various position counts and configurations for board-to-board applications. The 746 series is characterized by its through-hole mounting capability and durable metal contact systems suitable for industrial use.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official obsolescence notices or cross-reference guides for potential alternatives.
