Product Detailed Parameters
- Description：RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD
- Series：WE-MCA
- Mfr：Würth Elektronik
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Bluetooth, Cellular, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.4GHz, 5GHz
- Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz
- Antenna Type：Chip
- Number of Bands：2
- VSWR：2.2
- Return Loss：-
- Gain：1dBi, -1.5dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.047" (1.20mm)
- Applications：Bluetooth, GSM, WLAN
- Power - Max：3 W
Download product information
Overview

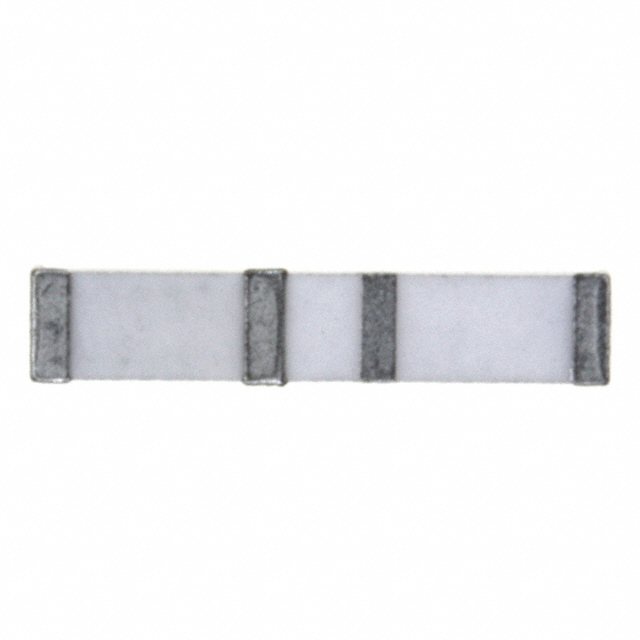

The Würth Elektronik 7488912455 is a multilayer dual-band chip antenna from the WE-MCA series, designed for surface mount technology. It operates across two frequency bands: 2400–2500 MHz and 4900–5875 MHz, supporting applications such as Bluetooth, GSM, WLAN, WiFi, and Zigbee. The component features a 50 Ohm impedance and measures 8.5mm x 1.6mm x 1.2mm.
Feature Summary
- Dual-band operation covering 2.4 GHz and 5 GHz ranges
- Multilayer construction for compact surface mount integration
- Supports multiple wireless protocols including Bluetooth and WiFi
Applications
- Bluetooth devices
- WLAN and WiFi modules
- Zigbee networks
- GSM communication equipment
Procurement Notes
Verify the specific datasheet version to confirm mechanical tolerances and soldering profile requirements. Ensure compatibility with the target PCB layout regarding ground plane clearance and antenna placement. Cross-reference the official Wurth Elektronik documentation for any updates on material compliance or recommended assembly processes before finalizing procurement.
