74HCT32PW,112

Inverter Gates Overview

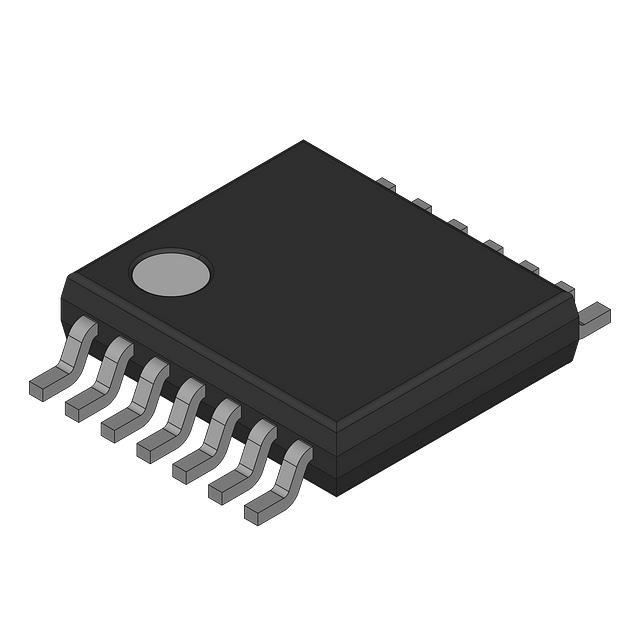

The 74HCT32PW,112 is a quad 2-input OR gate manufactured by Nexperia USA Inc. It operates within a supply voltage range of 4.5 V to 5.5 V and functions across an ambient temperature range of -40 °C to +125 °C. The device utilizes TTL input levels and features inputs with clamp diodes for interfacing with voltages exceeding VCC. It is housed in a TSSOP14 plastic thin shrink small outline package (SOT402-1) containing 14 leads with a body width of 4.4 mm.

Inverter Gates Feature Summary

• Quad 2-input OR logic function
• TTL compatible input levels
• Wide operating temperature range

Inverter Gates Applications

• General purpose digital logic circuits
• Signal routing and selection
• Logic level translation interfaces

Inverter Gates Procurement Notes

Verify the specific ordering suffix '112' corresponds to the TSSOP14 package variant SOT402-1. Confirm that the required logic family matches the HCT specification for TTL input compatibility rather than standard HC CMOS levels. Ensure the application environment remains within the specified -40 °C to +125 °C thermal limits during operation.

Inverter Gates Selection Notes

Select this component when TTL-compatible inputs are required for OR logic operations. The HCT series ensures compatibility with standard TTL logic families while maintaining CMOS low power dissipation characteristics. Verify that the TSSOP14 package dimensions fit the available PCB footprint constraints compared to alternative SO or QFN packages.

Inverter Gates Part Context

This part belongs to the 74HCT32 series of quad 2-input OR gates produced by Nexperia. It shares functional specifications with other variants in the family but differs in packaging. The PW suffix indicates the TSSOP14 package type, distinguishing it from SO or leadless flat package options available within the same logical product line.

Inverter Gates Replacement Considerations

Direct replacements include other 74HCT32 variants such as 74HCT32D or 74HCT32BQ if package changes are acceptable. Cross-family substitution with 74HC32 requires verification of input voltage level compatibility.
