74LVC1G332GF,132

Inverter Gates Overview

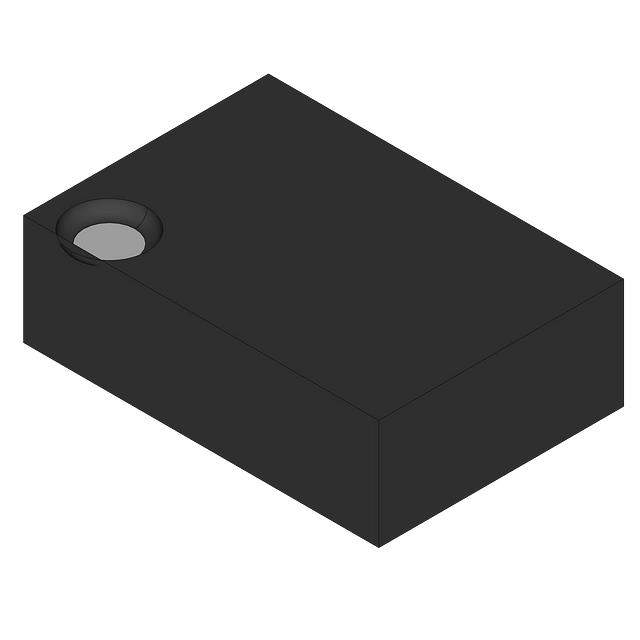

The Nexperia 74LVC1G332GF,132 is a single 3-input OR gate in the LVC logic family. It operates from 1.65 V to 5.5 V with ±24 mA output drive capability. The device features Schmitt-trigger inputs for noise tolerance and includes I_OFF circuitry for partial power-down protection. It is housed in an ultra-small XSON-6 package (0.9 × 1.0 mm) suitable for space-constrained designs.

Inverter Gates Feature Summary

• Single 3-input OR gate functionality
• Ultra-small XSON-6 package
• Schmitt-trigger input action
• Partial power-down protection via I_OFF

Inverter Gates Applications

• Portable consumer electronics
• Battery-powered devices
• Space-constrained PCB layouts

Inverter Gates Procurement Notes

Verify the exact suffix '132' corresponds to the XSON-6 tape-and-reel packaging configuration. Confirm RoHS compliance status through official Nexperia documentation. Ensure design compatibility with the specified voltage range and thermal characteristics before finalizing procurement orders.

Inverter Gates Selection Notes

Select this component when a compact 3-input OR gate is required within tight spatial constraints. The LVC series offers a balance of speed and low power consumption. Verify that the 24 mA drive current meets load requirements and that Schmitt-trigger inputs are necessary for signal integrity in noisy environments.

Inverter Gates Part Context

This part belongs to the Nexperia 74LVC1G332 series of single-function gates. It shares logical functionality with other variants like the TSSOP-6 packaged 74LVC1G332GW-Q100H but differs in physical footprint. The GF suffix specifically denotes the XSON-6 package type used in high-density applications.

Inverter Gates Replacement Considerations

Direct substitutes include other 74LVC1G332 variants with compatible packages such as the 74LVC1G332GS,132. Cross-reference pinouts and electrical specifications carefully to ensure functional equivalence without redesigning the surrounding circuitry.
