74LVC1G79GS,132

Overview

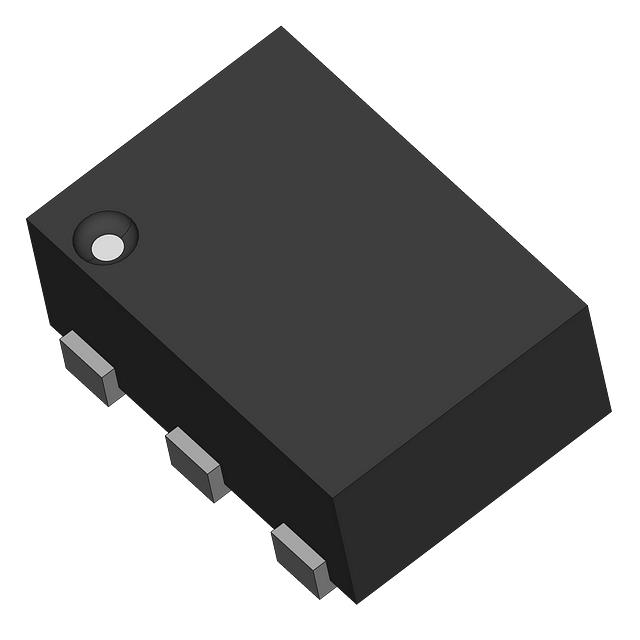

The Nexperia 74LVC1G79GS,132 is a single D-type edge-triggered flip-flop in the LVC logic family. It operates within a supply voltage range of 1.65 V to 5.5 V and features Schmitt trigger inputs for noise immunity. The device utilizes an XSON-6 (SOT1202) surface-mount package with six pins. It supports output drive currents of up to 32 mA for both high and low states. Operating temperatures span from -40 °C to +125 °C, ensuring reliability across industrial environments.

Feature Summary

• Single-channel positive-edge triggered D-type flip-flop functionality
• Schmitt trigger input configuration enhances signal integrity
• Wide operating voltage range supporting mixed-signal systems
• Industrial temperature rating for robust environmental performance

Applications

• Digital data storage and register applications
• State machine implementation in control circuits
• Timing and synchronization logic in embedded systems
• Signal processing pipeline stages requiring edge detection

Procurement Notes

Verify the complete part number including the suffix ,132 to ensure correct packaging specifications. Confirm that the XSON-6 footprint matches the target PCB layout dimensions. Check current availability status as production cycles may vary. Ensure compliance with RoHS and REACH regulations for the specific manufacturing batch. Validate electrical parameters against system requirements before finalizing procurement orders.

Selection Notes

Select this component when a single flip-flop with Schmitt trigger inputs is required in a compact surface-mount package. The wide voltage range allows compatibility with various logic levels. Consider the XSON-6 size constraints during board design. Verify that the propagation delay characteristics meet the timing requirements of the target application circuit.

Part Context

This device belongs to the 74LVC series of low-voltage CMOS logic integrated circuits manufactured by Nexperia. The series provides high-speed operation with low power consumption. The specific model represents a single-function flip-flop variant designed for space-constrained applications requiring reliable digital state retention.

Replacement Considerations

The SN74LVC1G79DSFR from Texas Instruments is a documented substitute option. Verify pinout compatibility and electrical specifications before substitution.
