74LVC2G08GM,125

Inverter Gates Overview

The Nexperia 74LVC2G08GM,125 is a dual 2-input AND gate in the LVC logic family. It operates within a supply voltage range of 1.65 V to 5.5 V and features overvoltage tolerant inputs up to 5.5 V. The device includes Schmitt-trigger action for noise immunity and IOFF circuitry for partial power-down protection. Propagation delay ranges from 1.0 ns to 11.3 ns depending on voltage and temperature. It supports ±24 mA output drive at 3.0 V and complies with JEDEC standards.

Inverter Gates Feature Summary

• Dual 2-input AND logic function
• Overvoltage tolerant inputs up to 5.5 V
• IOFF circuitry for partial power-down mode
• Schmitt-trigger inputs for slow signal tolerance

Inverter Gates Applications

• Mixed 3.3 V and 5 V logic translation
• Partial power-down system applications
• High noise immunity digital circuits

Inverter Gates Procurement Notes

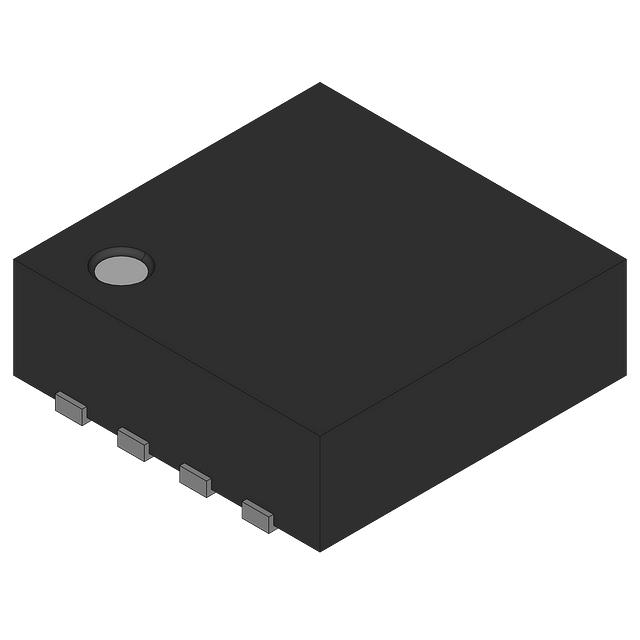

Verify the specific package type against the ordering suffix, as the GM suffix corresponds to an XQFN8 package (SOT902-2) which was removed from the current Rev 20 datasheet. Confirm availability through official Nexperia channels or authorized distributors, as this specific variant may be obsolete or superseded by other packages like DC or GT listed in the active documentation.

Inverter Gates Selection Notes

Select this component for designs requiring dual AND gates with mixed-voltage interface capabilities. Ensure the application environment stays within the -40 °C to +125 °C operating range. Verify that the required output drive current does not exceed the specified limits for the target supply voltage.

Inverter Gates Part Context

This part belongs to the Nexperia 74LVC series of low-voltage CMOS logic devices. The series provides high-speed performance with low power consumption. The 74LVC2G08 specifically offers two independent AND gates in a compact surface-mount package, suitable for portable and battery-operated equipment.

Inverter Gates Replacement Considerations

The 74LVC2G08GM (XQFN8) package was removed in revision 18. Consider alternatives such as 74LVC2G08DC (VSSOP8), 74LVC2G08DP (TSSOP8), or 74LVC2G08GT (XSON8) which are currently documented.
