Product Detailed Parameters
- Description：IC FF D-TYPE SNGL 1BIT 8XSON
- Series：74LVC
- Mfr：Nexperia USA Inc.
- Package：Bulk
- Function：Set(Preset) and Reset
- Type：D-Type
- Output Type：Complementary
- Number of Elements：1
- Number of Bits per Element：1
- Clock Frequency：200 MHz
- Max Propagation Delay @ V, Max CL：4.1ns @ 5V, 50pF
- Trigger Type：Positive Edge
- Current - Output High, Low：32mA, 32mA
- Voltage - Supply：1.65V ~ 5.5V
- Current - Quiescent (Iq)：40 µA
- Operating Temperature：-40°C ~ 125°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：8-XSON (1.2x1)
- Package / Case：8-XFDFN
- Input Capacitance：4 pF
- Grade：-
- Qualification：-
Download product information
Overview

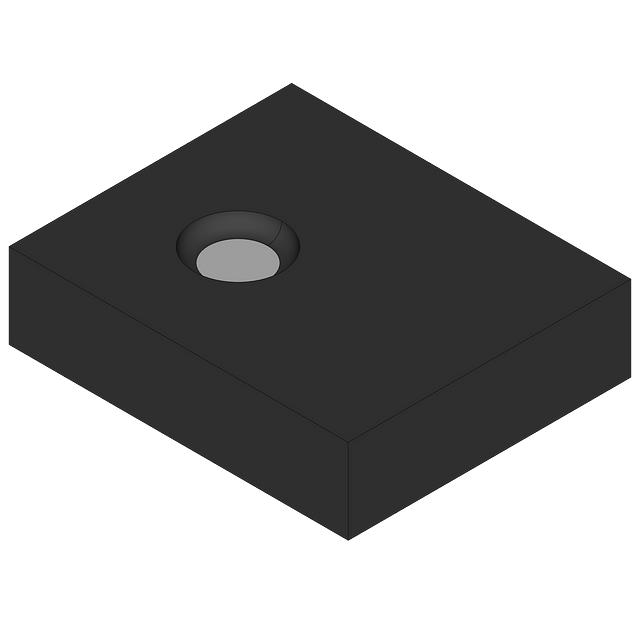

The 74LVC2G74GN,115 is a dual D-type flip-flop manufactured by Nexperia USA Inc. It operates within a supply voltage range of 1.65 V to 5.5 V and features positive-edge triggering with set and reset functions. The component utilizes an 8-XSON package and supports surface mount installation. It provides complementary outputs and maintains low static current consumption. The device is specified for operation across a temperature range of -40°C to +125°C.
Feature Summary
- Dual D-type flip-flops with positive-edge clock triggering
- Integrated set and reset control functions
- Complementary output configuration
Applications
- Digital data storage circuits
- Shift register implementations
- State machine logic elements
Procurement Notes
Verify the specific ordering code against official Nexperia documentation to ensure correct package variant and tape/reel specifications. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and traceability.
Selection Notes
Select this component for designs requiring dual independent D-type flip-flops in a compact footprint. Ensure the operating voltage aligns with the 1.65 V to 5.5 V specification. Verify that the 8-XSON package dimensions fit the PCB layout constraints. Consider the thermal performance requirements given the wide operating temperature range.
Part Context
This component belongs to the 74LVC logic family, designed for low-voltage CMOS applications. It offers high noise immunity and direct interface capabilities with various logic levels. The series emphasizes low power dissipation while maintaining fast switching speeds suitable for modern digital systems.
Replacement Considerations
Check for pin-compatible alternatives such as the 74LVC2G74GF variant if different packaging is required. Verify functional equivalence regarding timing parameters and electrical characteristics before substitution.
