7C-12.000MBB-T

Oscillators Overview

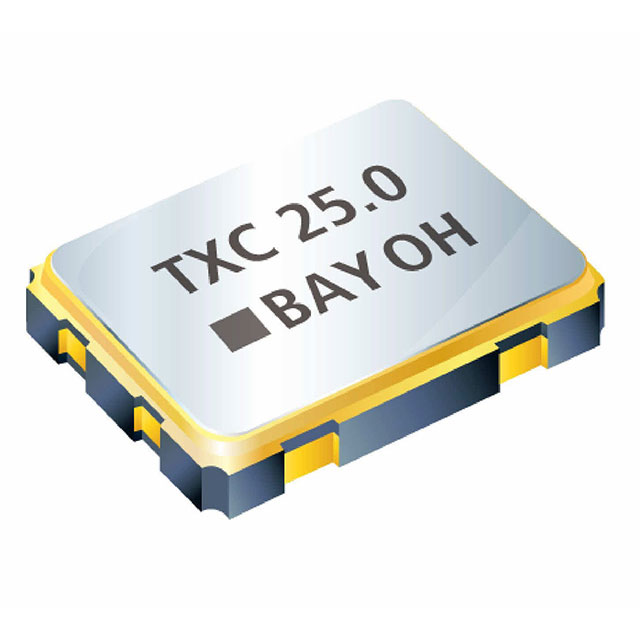

The TXC CORPORATION 7C-12.000MBB-T is a standard clock oscillator generating a 12 MHz frequency with ±50 ppm stability. It operates on a 3.3 V supply voltage, ranging from 2.97 V to 3.63 V, and draws a maximum current of 30 mA. The device features CMOS output format and includes enable/disable functionality. Housed in a compact 4-SMD, no-lead package measuring 3.2 mm x 2.5 mm, it supports surface mount installation. The component functions within an operating temperature range of -10°C to +70°C and complies with RoHS3 standards.

Oscillators Feature Summary

• Provides precise timing signals via CMOS output interface
• Integrates enable and disable control capabilities for power management
• Utilizes a compact surface-mount package design for efficient board space utilization

Oscillators Applications

• Standard clock generation in electronic circuits
• Timing reference sources for digital systems
• Embedded applications requiring stable frequency outputs

Oscillators Procurement Notes

Verify the specific manufacturer part number against official datasheets to ensure compatibility with system requirements. Confirm that the CMOS output logic levels align with connected components. Check environmental compliance status, such as RoHS3 certification, if required by project specifications. Ensure the operating temperature range meets the intended application conditions before procurement.

Oscillators Selection Notes

Select this component when a 12 MHz frequency with ±50 ppm stability is required for standard clock applications. Consider the 3.3 V supply voltage constraint and the 30 mA maximum current draw during power budgeting. The 4-SMD package size suits designs needing compact surface-mount solutions. Verify that the -10°C to +70°C operating range fits the environmental constraints of the target system.

Oscillators Part Context

This model belongs to the TXC Corporation standard clock oscillator series, designed for general-purpose timing applications. It represents a surface-mount solution offering reliable performance in consumer and industrial electronics. The component integrates quartz crystal technology within a sealed package to maintain frequency accuracy over time and temperature variations.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available for this component.
