807-014-459-212

Edgeboard Connectors Overview

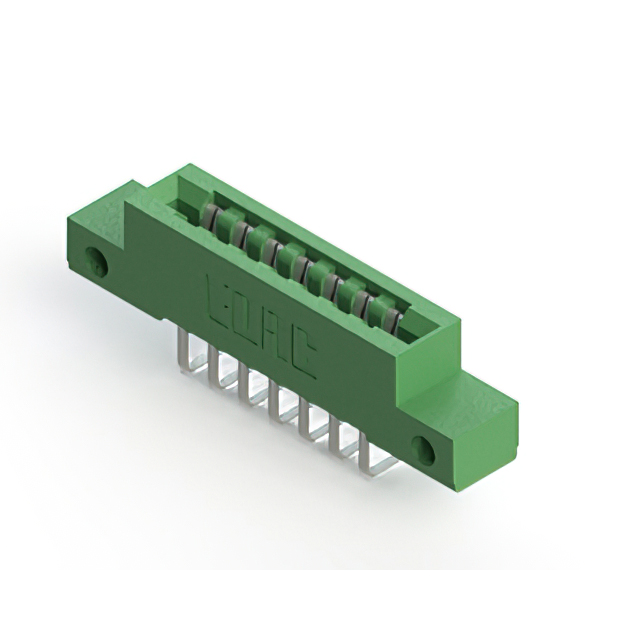

The EDAC Inc. 807-014-459-212 is a standard high-temperature card edge connector receptacle designed for panel mount applications. It features a single row with 14 positions and a contact spacing of 3.96 mm (0.156 inches). The unit supports a board thickness range of 1.37 mm to 1.78 mm (0.054" to 0.070"). Electrical specifications include a current rating of 5 A and an insulation resistance of 5 GOhms. The contacts are made of copper alloy with gold plating, while the housing utilizes Diallyl Phthalate (DAP) material. Operating temperatures range from -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature capability utilizing Diallyl Phthalate (DAP) housing material for thermal stability
• Gold-plated copper alloy contacts ensure reliable signal transmission in demanding environments
• Panel mount design with right-angle orientation for secure mechanical integration

Edgeboard Connectors Applications

• Medical interconnect solutions requiring robust connectivity
• Agricultural technology equipment operating in harsh environments
• Industrial control systems needing high-temperature resistant components

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, contact configuration, and flange dimensions. Ensure compatibility with target PCB thickness and mounting requirements before procurement. Cross-reference datasheet revisions to confirm compliance with current RoHS standards and material specifications.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 14-position card edge connector is required for panel-mounted applications. The choice is driven by the need for high-temperature performance up to 125°C and a 3.96 mm pitch. Verify that the right-angle mounting style aligns with the system's spatial constraints and that the DAP housing meets environmental durability needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 Series, which specializes in high-temperature card edge connectors. The series is engineered for reliability in challenging conditions, utilizing durable materials like DAP for the insulator. It serves as a critical interface component in sectors such as medical and agricultural technology where standard connectors may fail under thermal stress.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult official EDAC cross-reference guides or distributor databases for verified alternatives.
