807-015-445-102

Edgeboard Connectors Overview

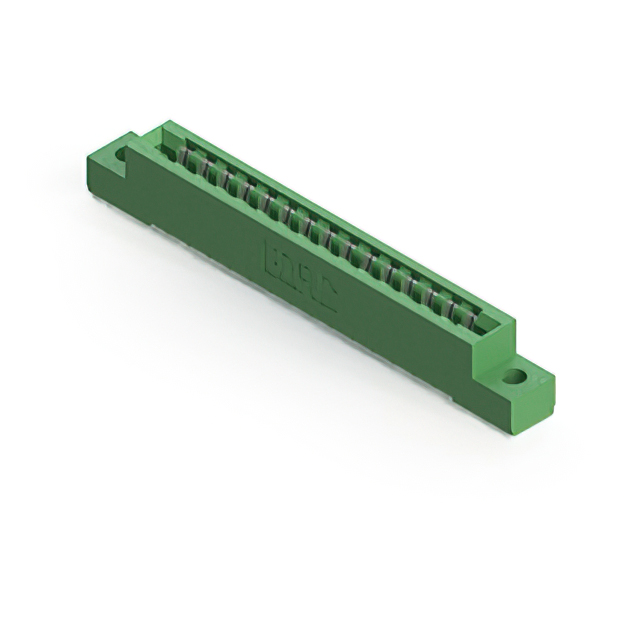

The EDAC Inc. 807-015-445-102 is a standard card edge connector receptacle designed for high-temperature applications within the 807 series. It features 15 positions arranged in a single row with a 3.96 mm (0.156 inch) contact spacing. The component utilizes gold-plated copper alloy contacts and a green Diallyl Phthalate (DAP) insulator, supporting a PCB thickness of 1.57 mm. Rated for 5 A current, it operates between -40°C and +125°C with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for demanding environments
• Gold-plated contacts ensure reliable signal transmission
• Single-row configuration for compact board integration

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Harsh environment industrial systems

Edgeboard Connectors Procurement Notes

Verify the specific tin plating finish against project requirements, as this variant differs from the common gold-plated versions in the 807 series. Confirm availability status through authorized distributors, as supply may be restricted or subject to long lead times. Ensure the single-row design aligns with the target PCB layout before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this part when a single-row interface is required for high-temperature stability. The 3.96 mm pitch accommodates standard daughter boards. Verify that the tin contact finish meets the application's conductivity needs, as gold variants are also available in this series for different performance profiles.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 High Temp Series, which provides robust interconnect solutions for medical and agricultural sectors. The series offers various position counts and mounting styles, all sharing consistent thermal ratings and material specifications for durability.

Edgeboard Connectors Replacement Considerations

Consider EDAC 807-015-445-108 if gold plating is preferred over tin. For double-row configurations, evaluate models like 807-014-500-202. Always verify pin count and pitch compatibility before substituting.
