807-030-455-203

Edgeboard Connectors Overview

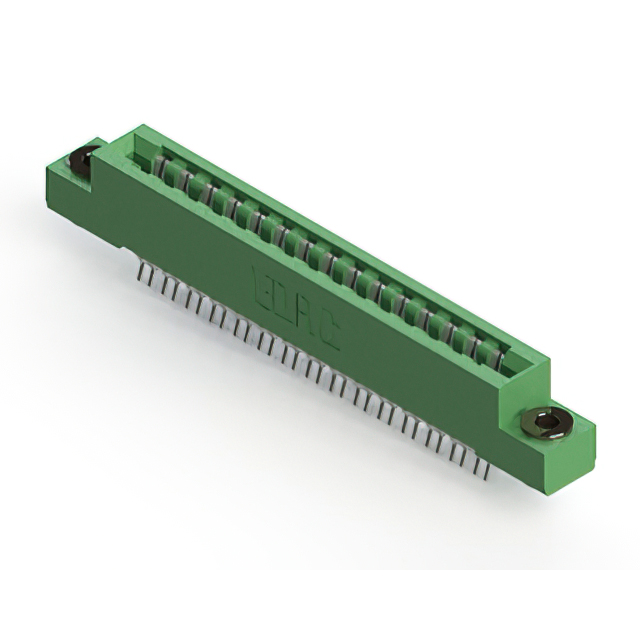

The EDAC Inc. 807-030-455-203 is a standard card edge connector receptacle designed for high-temperature applications. It features 30 positions with a 3.96 mm pitch and supports a board thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts rated for 5 A current. Housing material is diallyl phthalate (DAP), providing thermal stability up to +125°C. Installation is achieved via through-hole solder pin termination in a right-angle configuration, ensuring reliable electrical connections in demanding environments.

Edgeboard Connectors Feature Summary

• High-temperature resistant DAP insulator housing
• Gold-plated copper alloy contact system
• Right-angle through-hole mounting style

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific datasheet version for the 807-030-455-203 to confirm exact mechanical dimensions and plating specifications before integration. Ensure compatibility with the target PCB stack-up regarding the 1.57 mm thickness requirement. Cross-reference the manufacturer's latest documentation to validate compliance with relevant environmental standards and RoHS directives applicable to your region.

Edgeboard Connectors Selection Notes

Select this model when a right-angle, high-temperature card edge solution is required. The 3.96 mm pitch accommodates specific daughter board designs. Verify that the 5 A current rating meets circuit demands. Consider the through-hole solder pin termination method against available assembly processes. Confirm the 30-position count aligns with interface requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 Series, characterized by high-temperature performance and robust construction. The series offers various position counts and termination options. The 807-030-455-203 specifically addresses needs for right-angle mounting and solder pin termination within this standardized family of connectors.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and row configuration but different position counts or termination types. Verify mechanical fit and electrical ratings before swapping. Consult official cross-reference lists for confirmed equivalent part numbers.
