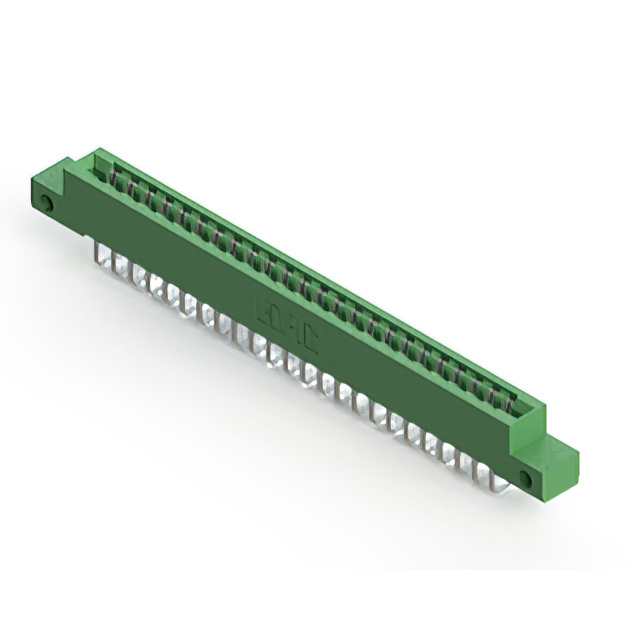

807-048-459-212 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 48POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 807-048-459-212
- Description：CONN EDGE DUAL FMALE 48POS 0.156
- Series：807
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：24
- Number of Positions：48
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 807-048-459-212
Edgeboard Connectors Overview
The EDAC Inc. 807-048-459-212 is a standard card edge connector receptacle from the 807 series, designed for high-temperature applications. It features 48 positions arranged in a dual row with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) insulator. Rated for 5 A current, it supports board thicknesses of 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to +125°C.
Edgeboard Connectors Feature Summary
- High-temperature capability suitable for demanding environments
- Gold-plated contacts ensure reliable signal transmission
- Dual-row configuration provides high-density connectivity
Edgeboard Connectors Applications
- Industrial control systems
- Medical equipment interconnects
- Automotive electronics
- Communication infrastructure
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with target PCB thickness and mounting requirements before procurement. Cross-reference manufacturer part numbers to avoid substitution errors.
Edgeboard Connectors Selection Notes
Select this component when high-temperature stability and robust electrical performance are required. The dual-row layout maximizes connection density within limited space. Verify that the mating card edge dimensions align with the specified 1.37 mm to 1.78 mm range for proper mechanical engagement.
Edgeboard Connectors Part Context
Part of the EDAC 807 series, which specializes in high-temperature card edge connectors. This series is engineered for reliability in harsh conditions, utilizing durable materials like DAP insulation and gold contacts to maintain performance across wide thermal ranges.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference guides for verified substitutes. Generic equivalents may not match the specific high-temperature ratings or dimensional tolerances required for secure installation.
