807-076-558-202

Edgeboard Connectors Overview

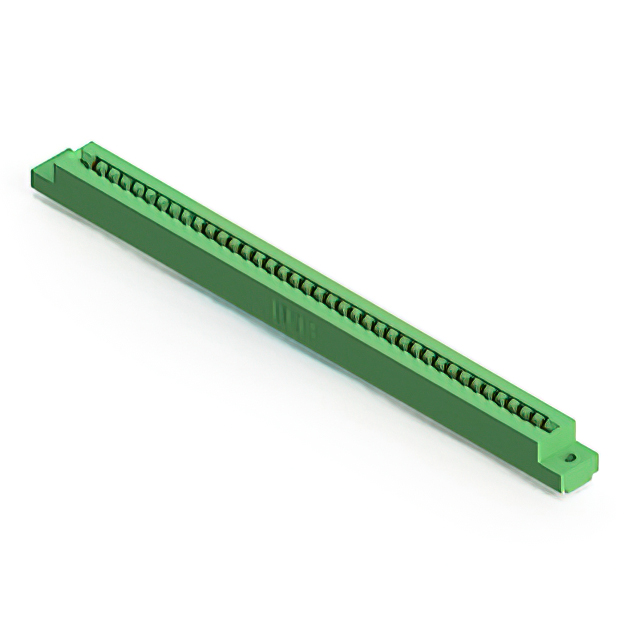

The EDAC Inc. 807-076-558-202 is a standard high-temperature card edge connector from the 807 series. It features 76 positions arranged in a double-row configuration with a 3.96 mm (0.156 inch) contact spacing. Designed for through-hole installation at a right angle, it utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) insulator. The unit supports a PCB thickness of 1.57 mm and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for demanding thermal environments
• Gold-plated contacts ensure reliable signal transmission
• Double-row receptacle design accommodates dual-sided daughter boards

Edgeboard Connectors Applications

• Medical interconnect systems
• Agricultural technology equipment
• Industrial control modules

Edgeboard Connectors Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official EDAC documentation. Confirm that the specific ordering suffix matches the required pin count and tail bend specifications. Ensure compliance with RoHS standards if applicable to the target assembly. Check current availability status as supply may be restricted or subject to long lead times depending on the region.

Edgeboard Connectors Selection Notes

Select this connector when a robust, high-temperature solution is required for double-sided card edge applications. The 3.96 mm pitch and 76-position count define the interface density. Verify that the host system supports the specified 1.57 mm board thickness and right-angle mounting constraints. Consider the DAP material properties for environmental resistance during operation.

Edgeboard Connectors Part Context

This component belongs to the EDAC 807 High Temperature Series, designed for durability in harsh conditions. It serves as a receptacle for mating with card edge modules, providing stable electrical connections in sectors such as medical and agricultural technology where reliability under thermal stress is critical.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 807 series variants with matching 76-position counts and 3.96 mm pitch. Ensure any replacement maintains the same double-row configuration and right-angle mounting style to fit existing mechanical enclosures.
