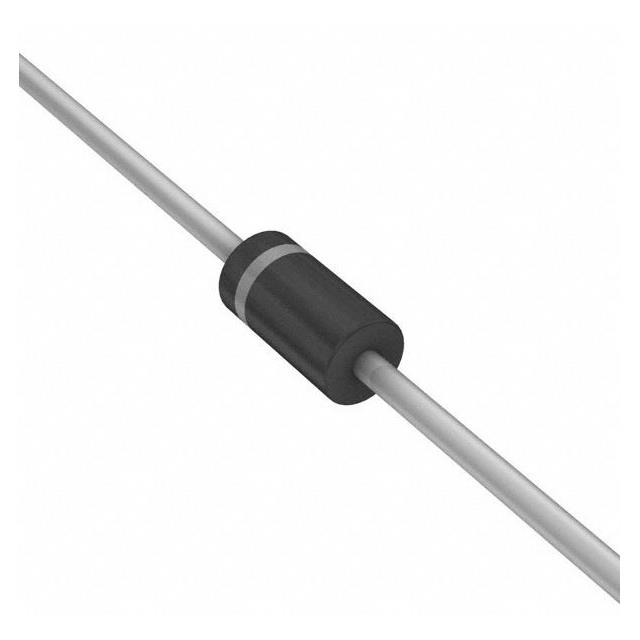

80SQ045N
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：DIODE SCHOTTKY 45V 8A AXIAL
- Series：-
- Mfr：onsemi
- Package：Bulk
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：45 V
- Current - Average Rectified (Io)：8A
- Voltage - Forward (Vf) (Max) @ If：550 mV @ 8 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：1 mA @ 45 V
- Capacitance @ Vr, F：-
- Mounting Type：Through Hole
- Package / Case：DO-201AA, DO-27, Axial
- Supplier Device Package：Axial
- Operating Temperature - Junction：-65°C ~ 175°C
- Grade：-
- Qualification：-
Download product information
Overview
The onsemi 80SQ045N is a Schottky barrier rectifier utilizing large-area metal-to-silicon technology with epitaxial construction and oxide passivation. It provides an average rectified forward current of 8.0 A at 75°C and a peak repetitive reverse voltage of 45 V. The device features a low instantaneous forward voltage of 0.55 V at 8.0 A and supports a non-repetitive peak surge current of 140 A. Operating junction temperatures range from -65°C to +125°C, housed in the DO-201AD axial lead package.
Feature Summary
- Employs Schottky Barrier principle for majority carrier conduction with low stored charge
- Features highly stable oxide passivated junction with guard-ring stress protection
- Designed for high efficiency through low power loss and low forward voltage characteristics
Applications
- Low-voltage, high-frequency inverters
- Free wheeling diodes
- Polarity protection diodes
Procurement Notes
Verify component status carefully as this device is listed as discontinued by the manufacturer and is not recommended for new designs. Confirm availability through authorized distributors or secondary markets if sourcing for existing equipment maintenance. Ensure all handling procedures comply with ESD protection standards specified in the datasheet.
Selection Notes
Select this component for applications requiring robust axial lead mounting and reliable Schottky rectification at 45V. Consider thermal resistance values when designing heat dissipation strategies. Evaluate alternative active components if new design implementation is required due to the discontinued status of this specific part number.
Part Context
This device belongs to the 80SQ series of Schottky barrier rectifiers manufactured by onsemi. It utilizes state-of-the-art geometry featuring epitaxial construction. The product line is designed for general-purpose rectification tasks where low forward voltage drop and high surge capacity are critical performance factors.
Replacement Considerations
The datasheet explicitly states this device is discontinued and not recommended for new designs. Contact onsemi representatives for information on potential replacement parts or updated product lines suitable for modern implementations.
