8206-2X10C30DPT-S

Overview

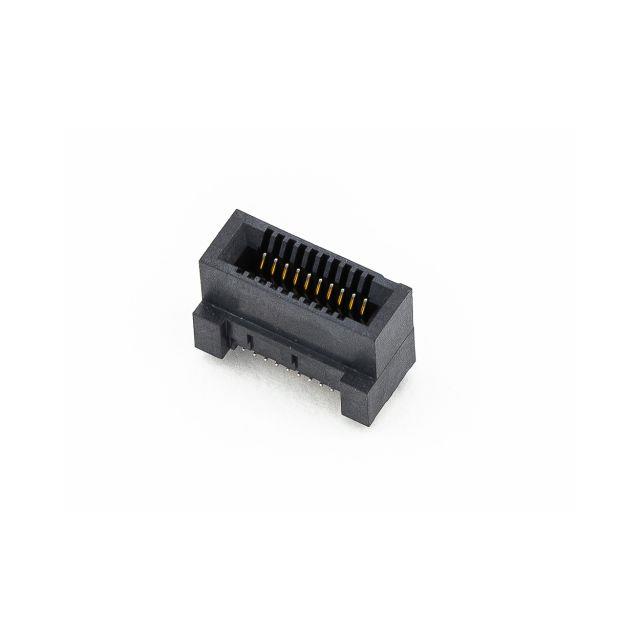

The Oupiin 8206-2X10C30DPT-S is a dual-edge female card edge connector featuring 20 positions arranged in two rows. It utilizes a 0.031-inch (0.80mm) pitch and employs surface mount termination for secure PCB attachment. The contacts are constructed from copper and finished with 30 microinches of gold plating to ensure reliable signal transmission. This component is designed for high-density electronic applications requiring robust mechanical stability and consistent electrical performance across multiple connection points.

Feature Summary

• Dual-row female contact configuration for simultaneous board interface
• Gold-plated copper contacts ensuring corrosion resistance and conductivity
• Surface mount termination method for automated assembly compatibility

Applications

• High-density circuit board interconnections
• Industrial control system modules
• Telecommunications equipment backplanes

Procurement Notes

Verify the specific suffix 'S' against manufacturer documentation to confirm exact plating thickness and material specifications. Ensure the selected variant matches the required 0.031-inch board thickness tolerance. Cross-reference RoHS compliance status with the latest official datasheet before finalizing procurement orders to meet regulatory requirements.

Selection Notes

Select this connector when a dual-edge female interface with a 0.031-inch pitch is required. Confirm that the target printed circuit board accommodates the specified 20-position layout. Evaluate the need for gold plating thickness based on the expected mating cycle count and environmental exposure conditions during operation.

Part Context

This component belongs to the Oupiin 8206 series of edgeboard connectors, which are engineered for compact electronic assemblies. The series offers various position counts and row configurations to support diverse design architectures. These connectors are widely utilized in sectors demanding reliable signal integrity within space-constrained environments.

Replacement Considerations

The Oupiin 8208-2X10C30DPT-S shares similar dimensional characteristics but may differ in locking mechanisms or terminal styles. Verify mechanical footprint and electrical ratings before substitution. No other direct substitutes are confirmed in available public documentation.
