833-018-500-207

Edgeboard Connectors Overview

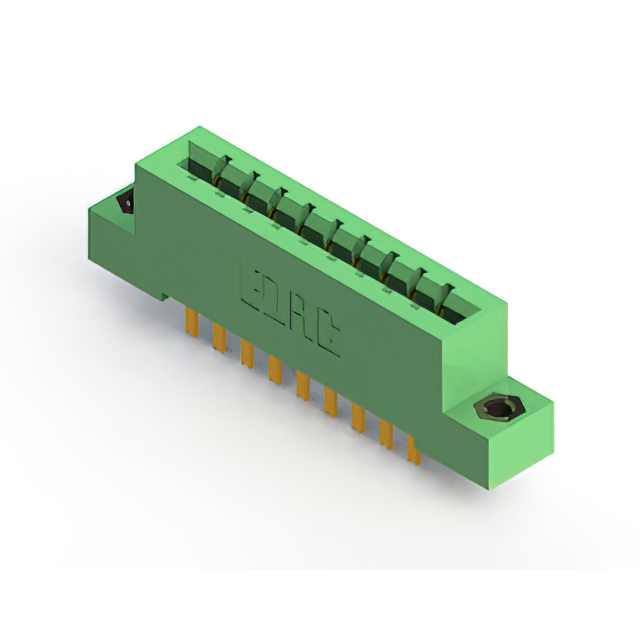

The EDAC Inc. 833-018-500-207 is a standard card edge connector featuring 18 positions arranged in two rows. It utilizes a female contact configuration with a 0.156-inch (3.96 mm) pitch and a 0.200-inch (5.08 mm) row spacing. The unit supports panel mounting via solder pin termination and accommodates board thicknesses of 1.57 mm. Constructed with copper alloy contacts featuring gold plating, the insulator is made from diallyl phthalate (DAP).

Edgeboard Connectors Feature Summary

• Dual-row female contact design for reliable signal transmission.
• Panel mount installation style with solder pin termination.
• Gold-plated copper alloy contacts ensure corrosion resistance.
• Diallyl phthalate (DAP) insulator material provides structural stability.

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 18-position dual-row configuration and 0.156-inch pitch before procurement. Confirm that the panel mount style and solder pin termination align with the assembly requirements. Ensure compatibility with the specified 1.57 mm board thickness to guarantee proper mechanical fit and electrical performance during installation.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with a 3.96 mm pitch is required for panel-mounted applications. The choice is driven by the need for gold-plated contacts on a DAP insulator body. Consider the 18-position count and 0.200-inch row spacing as primary constraints for the circuit layout and housing dimensions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors. The series offers various position counts and mounting styles designed for robust industrial and specialized environments. The 833 series is characterized by its use of durable materials and standardized dimensions to facilitate integration into larger electronic assemblies.

Edgeboard Connectors Replacement Considerations

Cross-reference other EDAC 833 series variants with matching 18-position counts and 0.156-inch pitches. Verify that any substitute maintains the same panel mount orientation and solder pin termination type to ensure mechanical interchangeability without redesigning the host enclosure.

Edgeboard Connectors FAQ

What is the contact material used in this connector?

The contacts are manufactured from copper alloy and feature a gold plating finish.

Does this connector support vertical or right-angle mounting?

The specifications indicate a panel mount style; specific angular orientation details beyond the general panel mount classification are not explicitly defined in the provided data.
