833-019-523-107

Edgeboard Connectors Overview

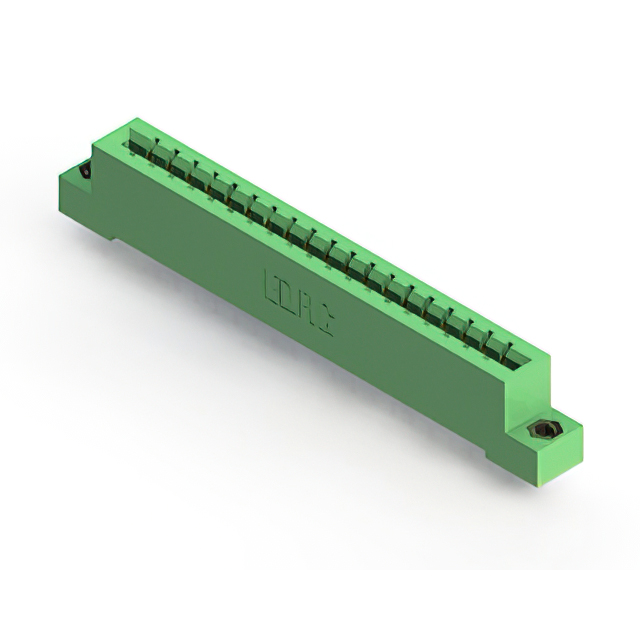

The EDAC 833-019-523-107 is a standard card edge connector from the 833 series, featuring 19 positions with a 3.96 mm (0.156 inch) contact spacing. Designed for single-edge PCBs with a nominal thickness of 1.57 mm (0.062 inch), it utilizes gold-plated copper alloy contacts and a diallyl phthalate (DAP) insulator body. The component supports panel mounting in a vertical orientation and offers a current rating of 3 A.

Edgeboard Connectors Feature Summary

• Accepts printed circuit boards with a nominal thickness of 0.062 inches
• Features high-profile insulator body construction
• Utilizes gold-plated contacts on copper alloy substrates

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Industrial control systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to ensure correct contact plating and housing color specifications. Confirm that the target application requires a single-edge connector configuration compatible with the 3.96 mm pitch. Check regional availability as distribution status may vary by location. Ensure compliance with RoHS requirements if applicable to the project constraints.

Edgeboard Connectors Selection Notes

Select this model when a vertical panel-mount solution is required for single-edge board insertion. The 19-position count suits moderate-density signal routing needs. Verify that the operating temperature range of -40°C to +105°C aligns with environmental conditions. Consider the DAP material properties for insulation resistance and durability in the intended deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 833 series of standard card edge connectors. The series provides reliable interconnection solutions for various industries including communications, consumer electronics, and energy sectors. The 833 series is characterized by its robust mechanical design and standardized pin spacing, facilitating widespread integration into electronic assemblies requiring secure board-to-panel connections.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include part numbers such as 833-016-521-112 and 833-031-520-112, which share identical electrical and mechanical specifications but differ in position count.
