833-022-523-107

Edgeboard Connectors Overview

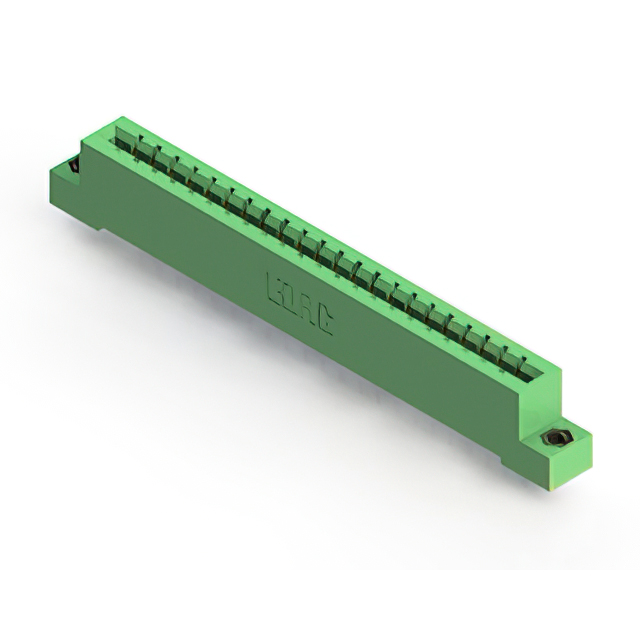

The EDAC Inc. 833-022-523-107 is a standard card edge connector from the 833 series, designed for panel mount applications. It features a single female configuration with 22 positions and a contact spacing of 0.156 inches (3.96 mm). The connector utilizes solder pin termination for secure board attachment. Constructed with copper alloy contacts and a green insulator, it supports double-row formations with tails measuring 0.025 inches square and 0.390 inches in length. This component is engineered for reliable signal transmission in industrial environments.

Edgeboard Connectors Feature Summary

• Single female edgeboard design for vertical panel mounting
• Copper alloy contacts with gold plating for conductivity
• Green diallyl phthalate (DAP) insulator housing
• Solder pin termination for PCB integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment interface modules
• Agricultural technology sensor connections
• General purpose backplane connectivity

Edgeboard Connectors Procurement Notes

Verify part authenticity through authorized EDAC distributors or Mouser Electronics. Confirm RoHS compliance status via official datasheets before procurement. Check regional availability as distribution may be restricted in certain areas. Ensure storage conditions maintain integrity of the DAP insulator and gold-plated contacts prior to assembly.

Edgeboard Connectors Selection Notes

Select this model when a single-row, 22-position card edge connector is required for panel-mounted applications. The 0.156-inch pitch suits standard PCB layouts. Consider the 833 series for its high-temperature tolerance and durable DAP construction. Verify that the solder pin tail dimensions match the target PCB hole specifications for proper mechanical retention.

Edgeboard Connectors Part Context

Part of the EDAC 833 High Temp Series, which offers connectors capable of withstanding elevated temperatures. The series includes various position counts and row configurations. This specific model represents a standard solution for connecting edgeboards to main systems in harsh environments where reliability and thermal stability are critical performance factors.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the 833 series include models like 833-022-520-107 for similar specifications. Cross-reference with 846 series parts if higher temperature ratings are needed. Ensure replacement options maintain the same 0.156-inch pitch and 22-position count for compatibility.
