837-007-500-604

Edgeboard Connectors Overview

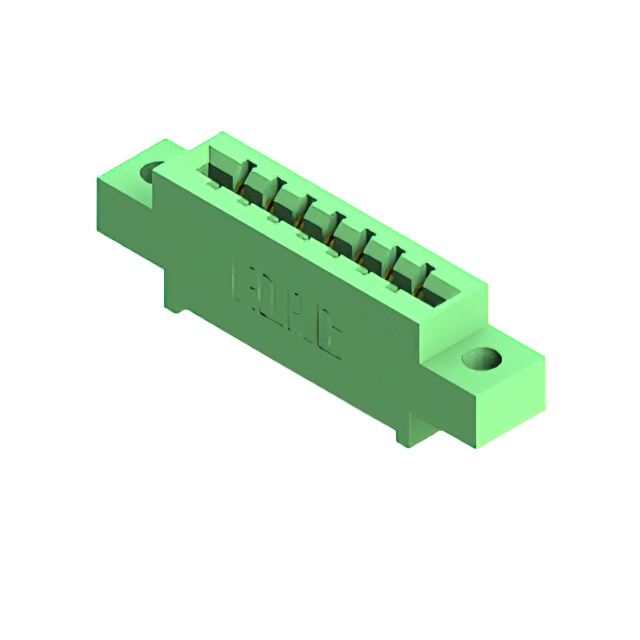

The EDAC Inc. 837-007-500-604 is a single-row, female edgeboard connector designed for through-hole mounting. It features seven positions with a 0.156-inch (3.96 mm) contact spacing. The contacts are made of copper alloy with a gold plating thickness of 10.0 µin (0.25 µm). The insulator material is diallyl phthalate (DAP), and the housing color is green. It supports card thicknesses between 0.054 and 0.070 inches.

Edgeboard Connectors Feature Summary

• Utilizes cantilever spring contacts for reliable board insertion
• Constructed with high-temperature resistant DAP insulator material
• Features gold-plated contacts to ensure stable signal transmission
• Designed for flush-mount installation with top opening

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Automotive electronic module integration
• Test and measurement instrument circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's 837 Series Ordering Guide to confirm flange and termination details. Ensure compatibility with the target PCB hole pattern and card thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 7-position female connector is required for high-reliability applications. Consider the 0.156-inch pitch and through-hole termination method as primary constraints for PCB layout design and mechanical assembly requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 837 High Temperature series, which provides robust connectivity solutions for demanding environments. The series offers various pin counts and configurations, maintaining consistent electrical performance and mechanical durability across different product variants within the family.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference documentation for verified substitute part numbers. Generic equivalents may not match the specific flange dimensions or contact plating requirements defined in the original datasheet.
